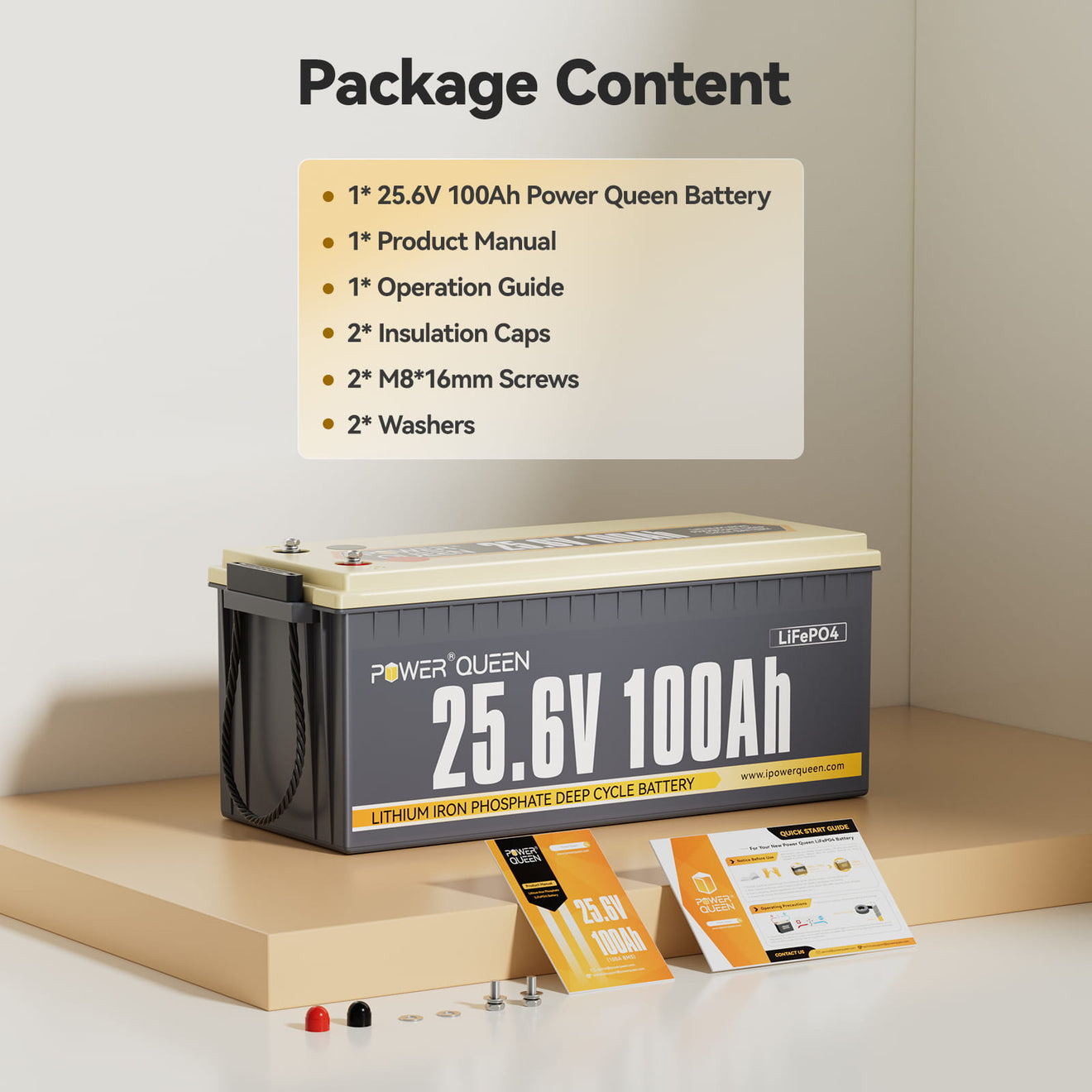

Package
Free Shipping
30-Day Money Back
5-Year Warranty
New

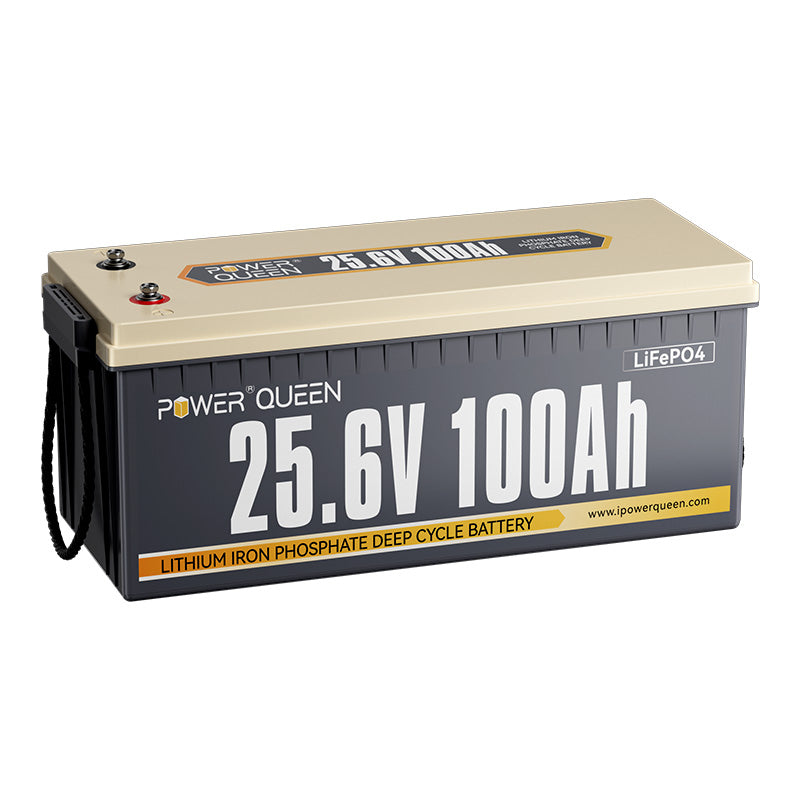

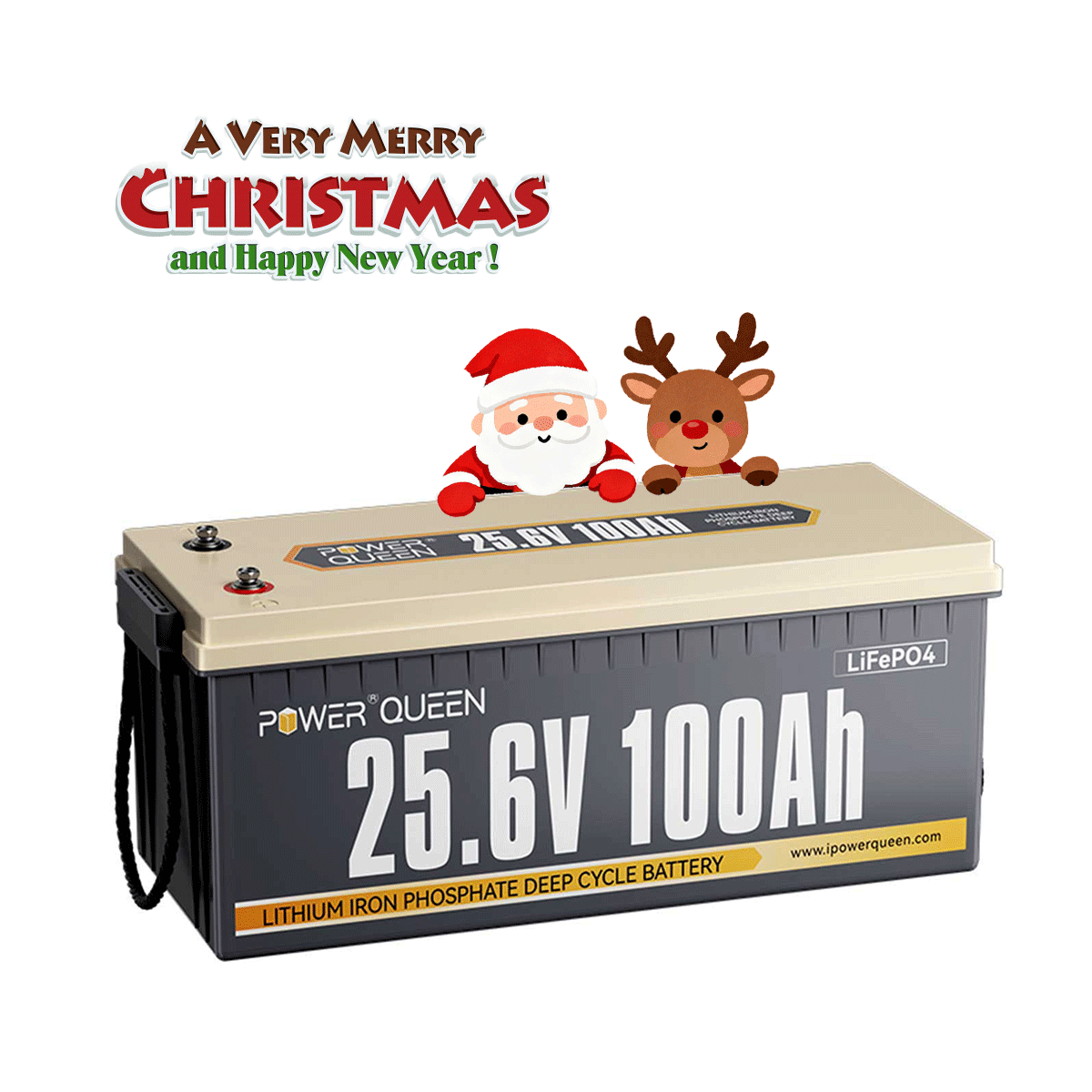

Power Queen 24V 100Ah LiFePO4 Battery
C$599.99
C$1,239.99

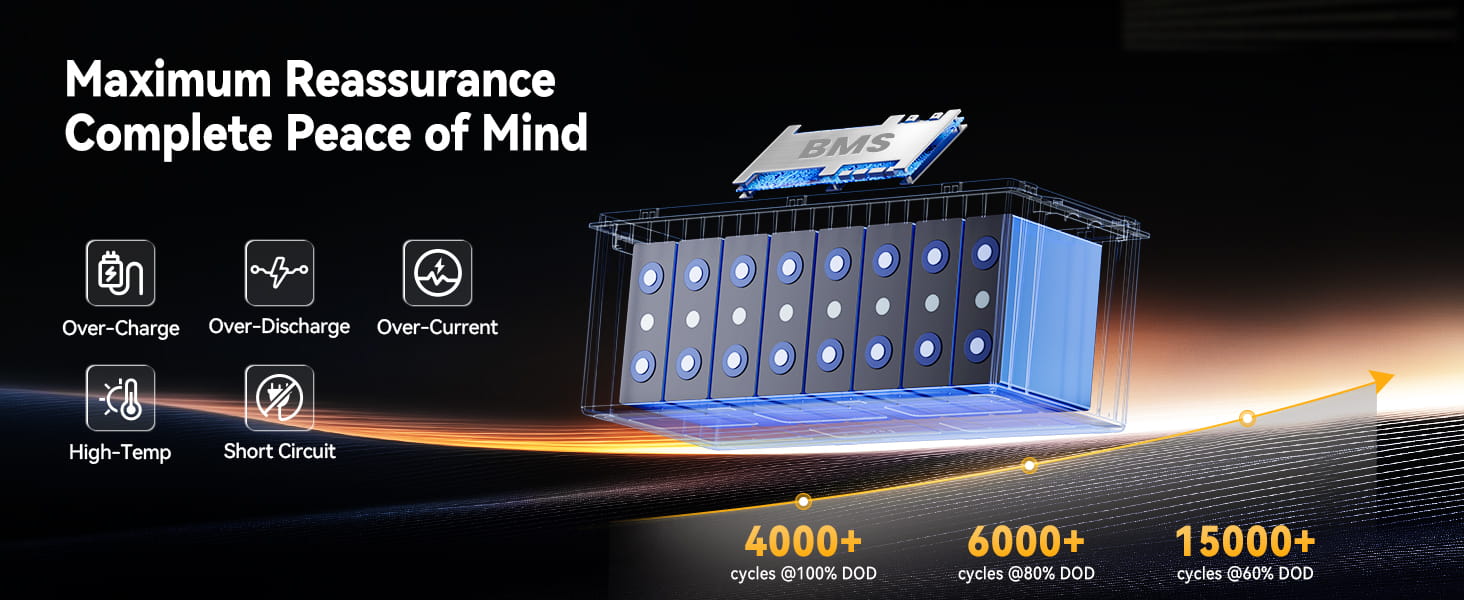

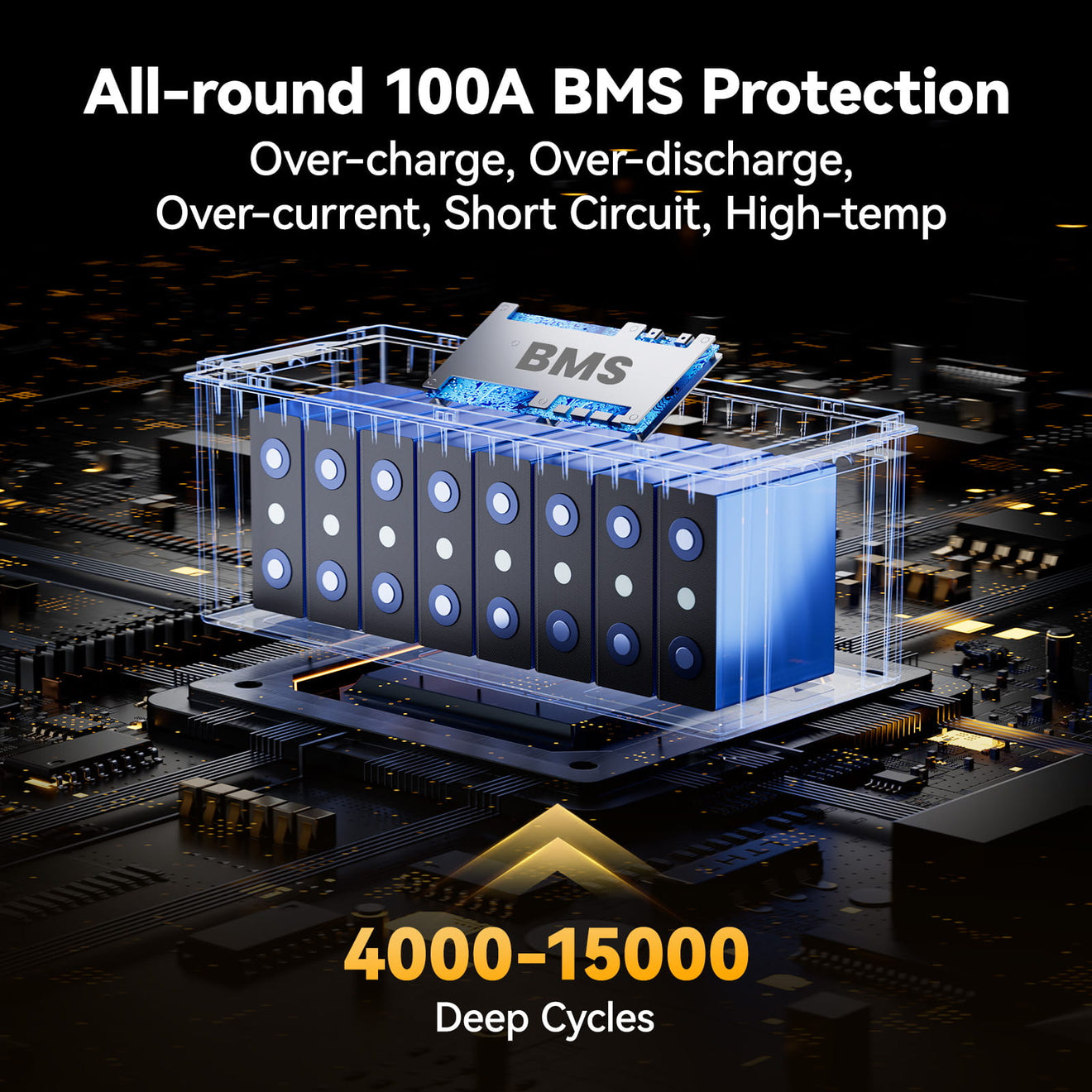

[100A BMS | 2560W Max Load] The Power Queen 24V 100Ah LiFePO4 battery features a built-in 100A BMS, safeguarding against overcharge, over-discharge, over-current, and short circuits, while supporting up to 2560W load power for more applications.
[Twice the Capacity] Elevate your solar system with the 24-volt lithium iron phosphate battery from Power Queen, offering double the capacity of comparable 12V 100Ah batteries, streamlining setup and connections.

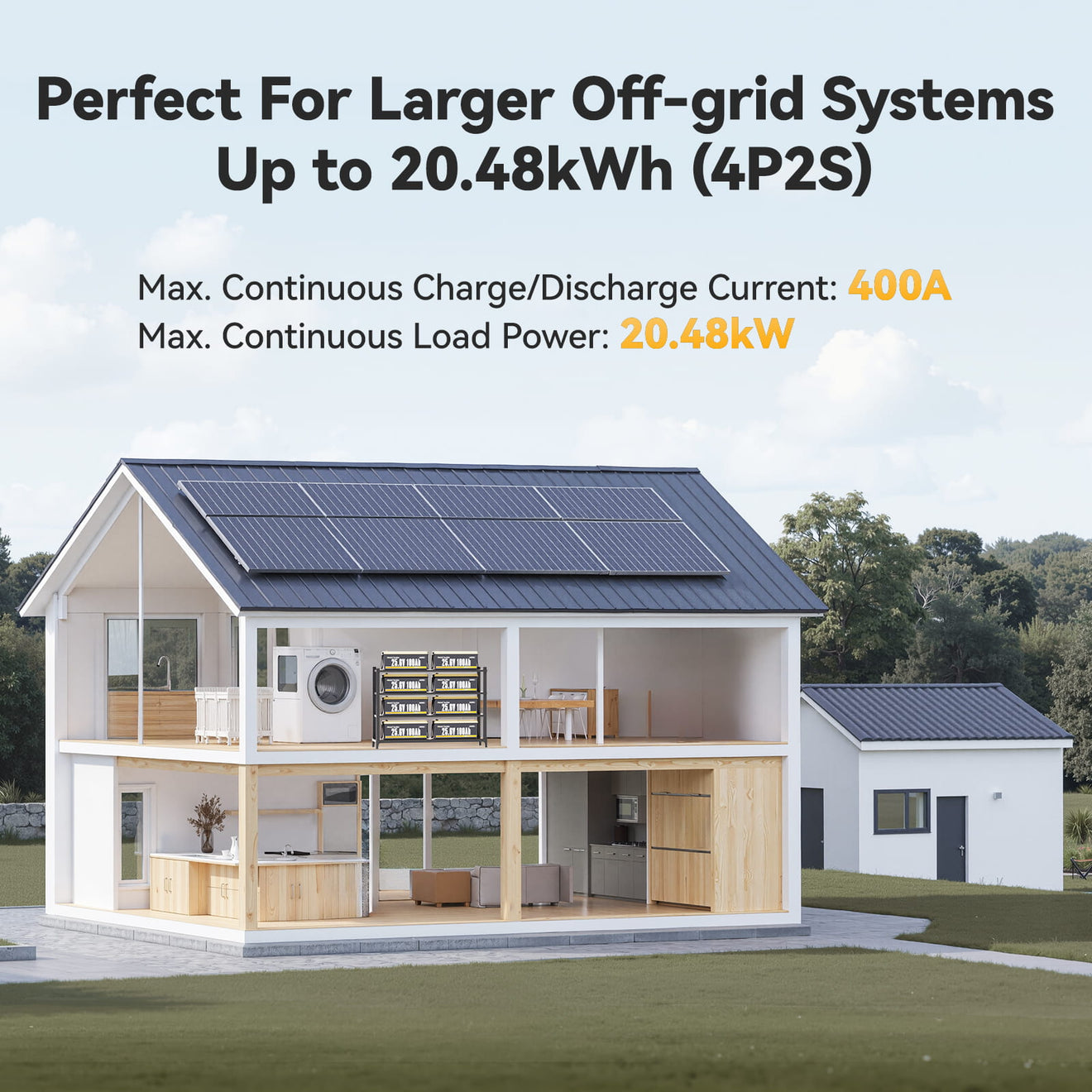

[Expandable Energy] Achieve up to 20.48kWh of usable energy with a maximum 2S4P configuration. Ideal for home solar systems, emergency backups, and RV trips, providing extensive power where needed.

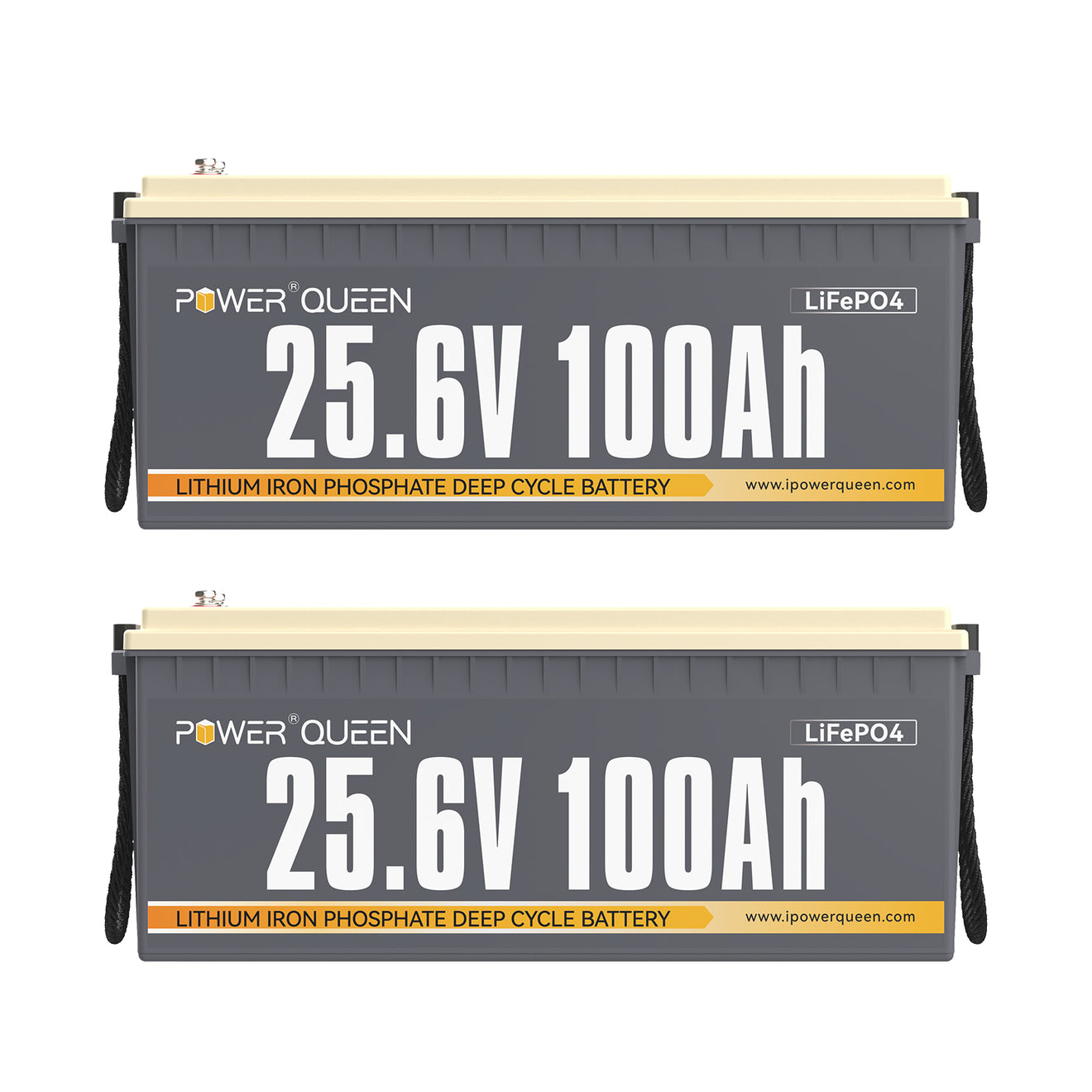

[Space-Saving Design] Replace two series-connected 12V 100Ah batteries with one Power Queen 25.6V 100Ah battery to save space and reduce the need for additional wiring, optimizing your energy system's efficiency.
[5-Year Warranty | Fast Delivery] Enjoy a dependable 5-year warranty and quick delivery within 3 to 7 workdays from our local Canadian warehouses.
Attention Please: This battery is NOT suitable to be used as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, lifts, vacuum cleaners, four-wheel drive lawn mowers, etc., for more info please consult Power Queen: support.ca@ipowerqueen.com
View more
Choose Products
Quantity
Frequently Purchased
Total
C$599.99
C$1,239.99
5-Year Warranty
We back the quality and performance of our products with comprehensive warranties. A 5-year warranty covers all Batteries. Learn more about Power Queen's warranty policy. 👈
Free Shipping in the CA
Free shipping to Canada, except Yukon, Northwest Territories, and Nunavut.
3-7 working days in Canada.
Easy Return & Exchange
Not satisfied? We offer a hassle-free 30-day return and exchange policy.
Share
24V100Ah
C$599.99
C$1,239.99
Feature
Specs
Compare
FAQ
Reviews
Specs
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years
Cycle Life：
4000 cycles
Nominal Voltage：
25.6V
Rated Capacity：
100Ah
Energy：
2560
Max. Expansion (Parallel & Series)：
4P2S
Internal Resistance：
≤40mΩ
Certifications：
UL-1973，FCC，CE，RoHS，UN38.3
BMS
BMS：
100A
Max. Continuous Output Power：
2560
Max. Continuous Charge Current：
100A(1C)
Max. Continuous Discharge Current：
100A(1C)
CHARGE
Charge Method：
CC/CV
Charge Voltage：
28.8±0.4V
Recommend Charge Current：
20A(0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
-20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection：
-20℃ / -4℉
Low-Temperature Charging Protection Auto Recovery：
-10℃ / 14℉
OTHERS
Terminals：
M8*16 mm
Weight Approx.：
45.59

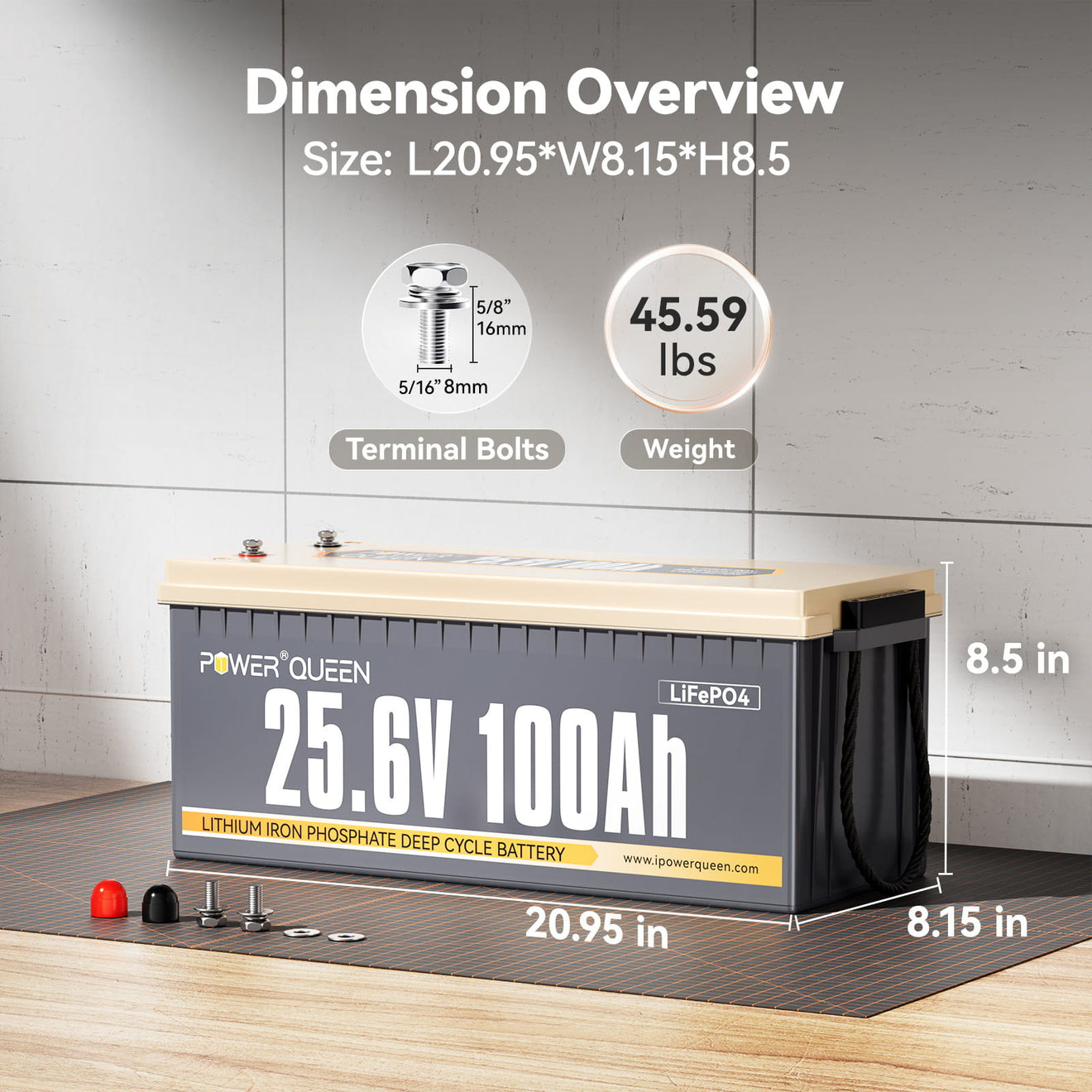

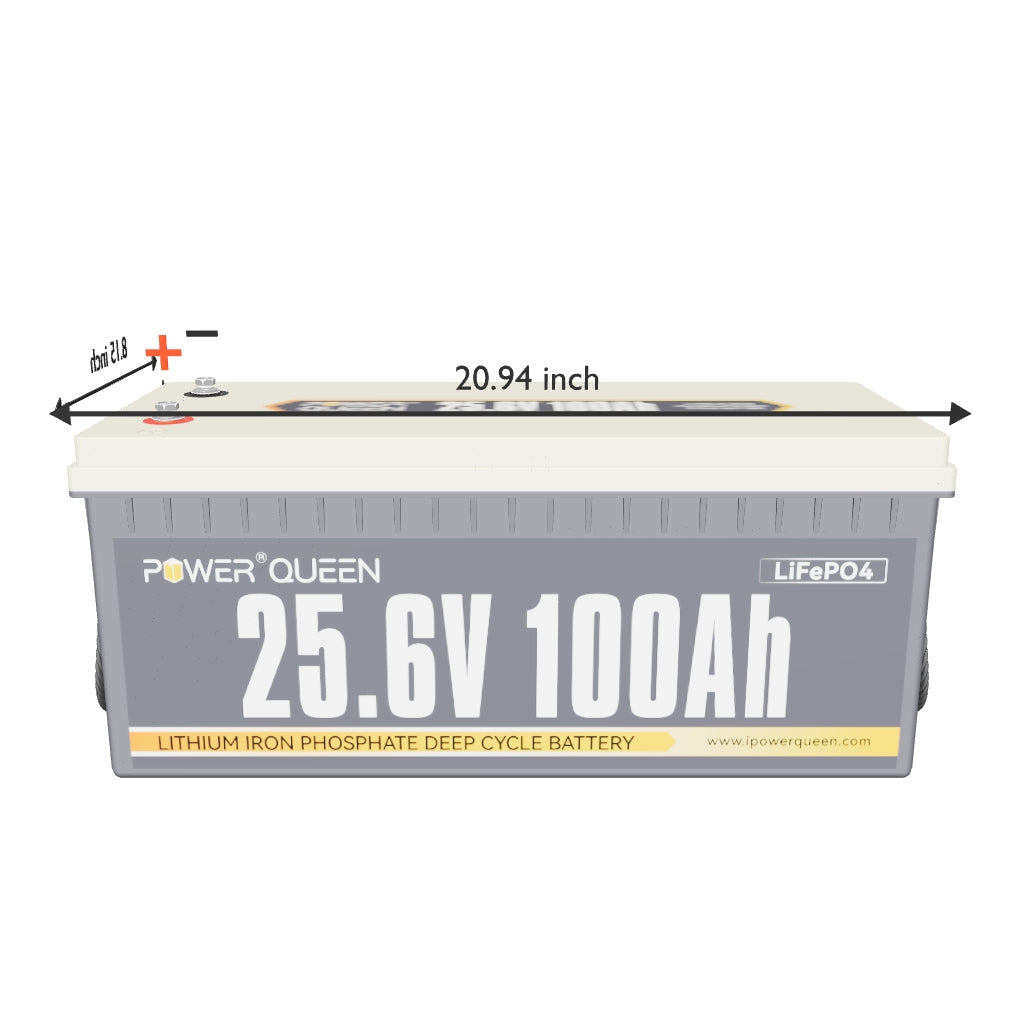

Size：
20.95*8.15*8.5 inch
Housing Material：
ABS
Protection Class：
IP65
View all
Compare
| Product |
24V100Ah
C$599.99
C$1,239.99
|
24V200Ah
C$1,299.99
C$2,299.99
|
|---|---|---|
| Cycle Life |
4000 cycles
|
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
|
| Nominal Voltage |
25.6V
|
25.6V
|
| Rated Capacity |
100Ah
|
200Ah
|
| Energy |
2560
|
5120
|
| Max. Expansion (Parallel & Series) |
4P2S
|
4P2S
|
| Internal Resistance |
≤40mΩ
|
≤40mΩ
|
| Certifications |
UL-1973，FCC，CE，RoHS，UN38.3
|
UL-1973，FCC，CE，RoHS，UN38.3
|
| BMS |
100A
|
200A
|
| Max. Continuous Output Power |
2560
|
5120
|
| Max. Continuous Charge Current |
100A(1C)
|
200A(1C)
|
| Charge Method |
CC/CV
|
CC/CV
|
| Charge Voltage |
28.8±0.4V
|
28.8±0.4V
|
| Recommend Charge Current |
20A(0.2C)
|
40A(0.2C)
|
| Charge Temperature |
0℃ to 50 ℃ / 32℉ to 122 ℉
|
0℃ to 50 ℃ / 32℉ to 122 ℉
|
| Discharge Temperature |
-20℃ to 60 ℃ / -4℉ to 140 ℉
|
-20℃ to 60 ℃ / -4℉ to 140 ℉
|
| Storage Temperature |
-10℃ to 50 ℃ / 14℉ to 122 ℉
|
-10℃ to 50 ℃ / 14℉ to 122 ℉
|
| Terminals |
M8*16 mm
|
M8*16 mm
|
| Weight Approx. |
45.59
|
82.67
|
| Size |
20.95*8.15*8.5 inch
|
20.47*10.55*8.66
|
| Housing Material |
ABS
|
ABS
|
| Protection Class |
IP65
|
IP65
|
FAQ
Are Power Queen LiFePO4 batteries safe?
Yes, LiFePO4 is an inherently safe chemistry and is recognized as the most stable lithium battery type on the market. Power Queen lithium cells are UL certified, ensuring they meet the highest standards for safety and sustainability. All Power Queen LiFePO4 batteries are equipped with an internal Battery Management System (BMS) that offers protection against under-voltage during discharge, over-voltage during charge, over-current during discharge, over-temperature during both charge and discharge, and short circuits, thereby safeguarding the battery cells from damage. Furthermore, Power Queen LiFePO4 lithium batteries have undergone rigorous testing to ensure they are free from the risks of fire and electric shock, even in harsh environments.
Can I use Power Queen LiFePO4 Lithium batteries as starting batteries?
No, Power Queen LiFePO4 lithium batteries are designed solely for energy storage and should not be used as starting batteries. Please do not use them to start any devices.
How do I store Power Queen LiFePO4 lithium batteries?
It is recommended to store Power Queen LiFePO4 batteries at 50% state of charge (SOC). If the batteries are stored for long periods, cycle the batteries at least every 6 months. Recommended storage environment: 10℃～35℃ (50℉～95℉), 45%RH～75％RH.

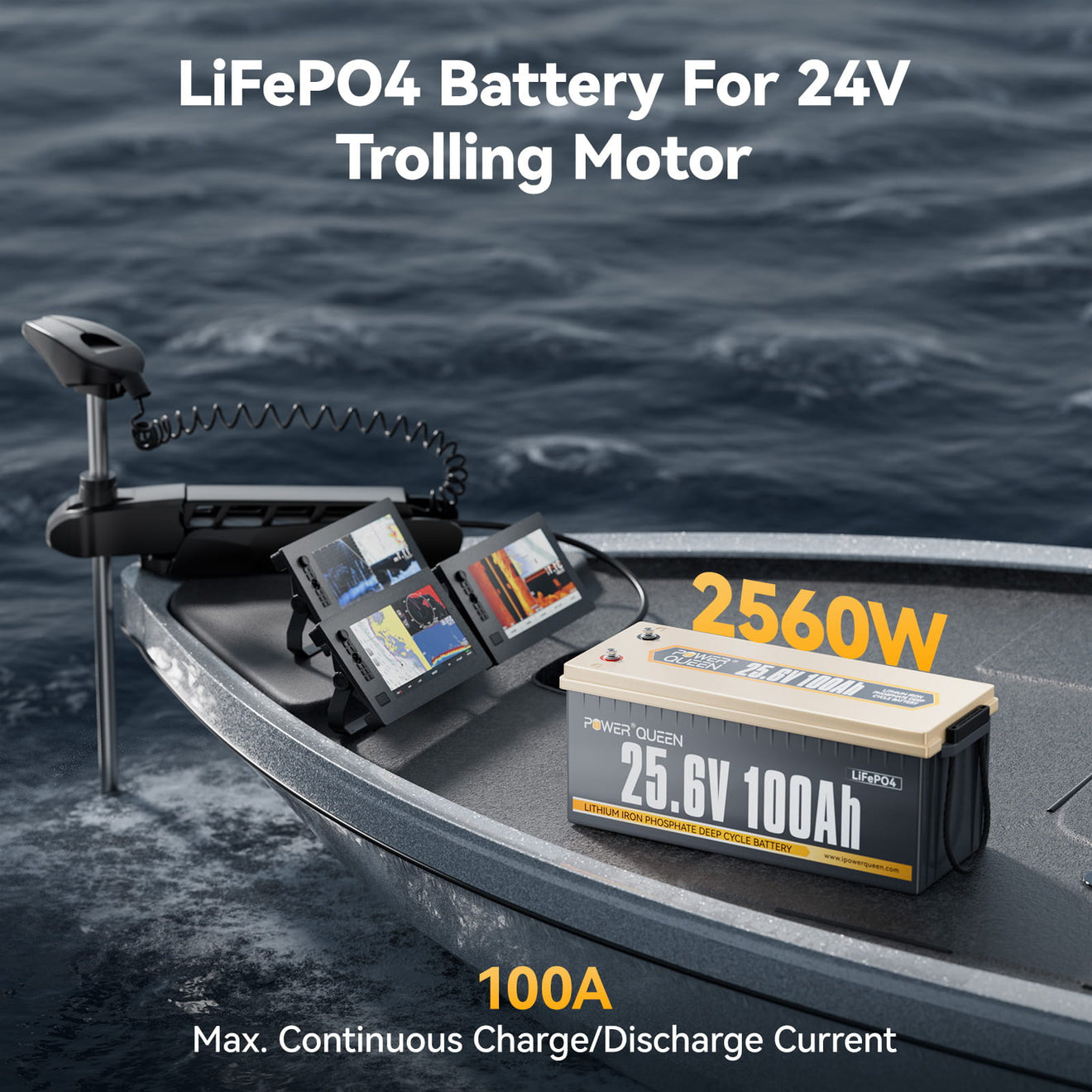

What size of the trolling motor suits 24V 100Ah lithium battery?
70 ~ 100 lb trolling motor suits 24V 100Ah lithium battery.
Can I charge Power Queen LiFePO4 lithium batteries with solar panels?
Yes, you can charge Power Queen LiFePO4 lithium batteries with solar panels. Here are 3 reliable ways to charge
1. Using Solar Panels
The Power Queen 24V 100Ah battery can be fully charged by in one day (with effective sunshine 4.5hrs/day) by 800W solar panels. It may take more than one day to fully charge the battery by ≥800W solar panels since the duration and intensity of light would be a great factor for their charging efficiency.
2. Generator/Alternator
If the alternator or generator supports DC output, a DC-to-DC charger is needed to connect the battery to the generator; if your alternator or generator supports AC output, please add a suitable battery charger to connect the battery and the generator according to our recommendations.
The Recommended Charging Voltage: 28.4V - 29.2V. The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
3. LiFePO4 Smart Chargers
To charge 24V battery, it is recommended to use 29.2V battery charger.
The Recommended Charging Voltage: 28.4V - 29.2V.
The Recommended Charging Current: ① 20A (0.2C): the battery will be fully charged in around 5 hrs to 100% capacity; ② 50A (0.5C): the battery will be fully charged in around 2 hrs to around 97% capacity.
Related reading: Can I Charge a Lifepo4 Battery With a Lead Acid Charger?
