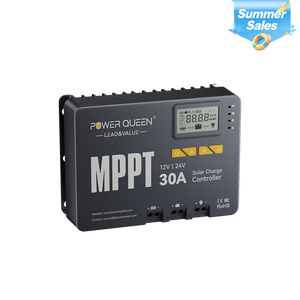

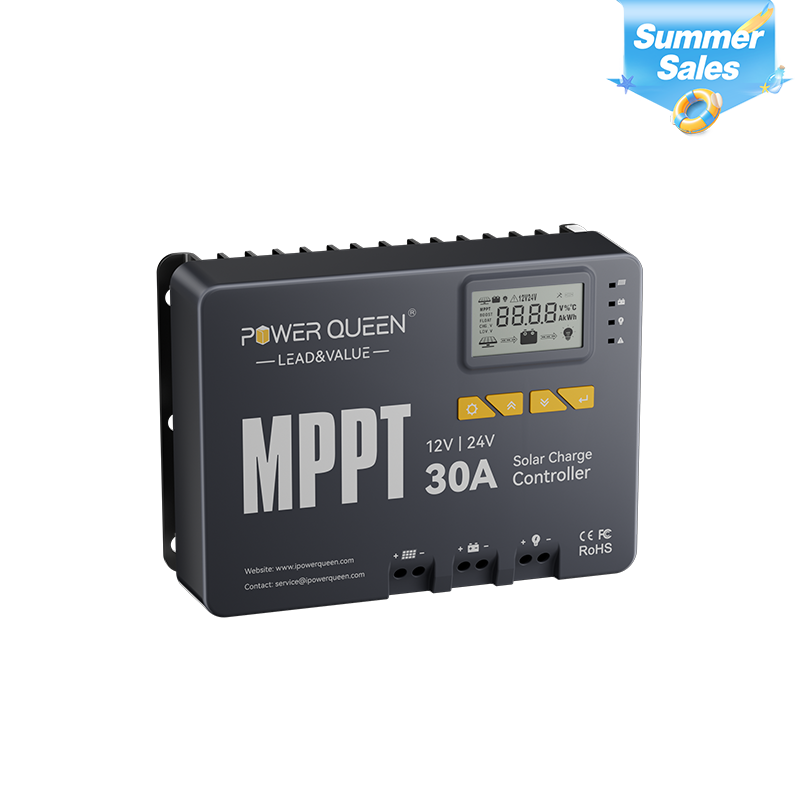

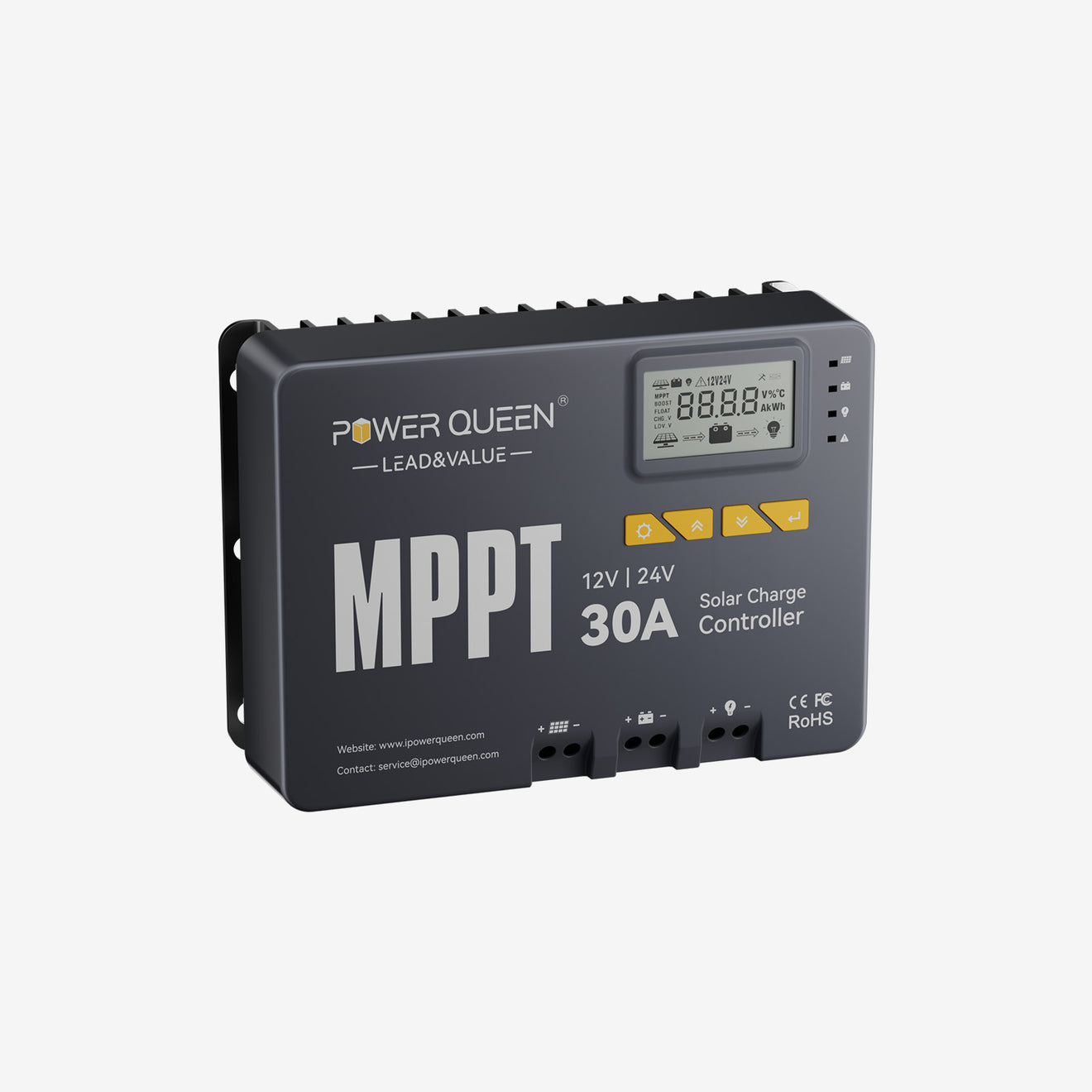

Power Queen 12/24V 30 Amp MPPT Solar Charge Controller & Bluetooth Adapter
C$161.99
C$209.99

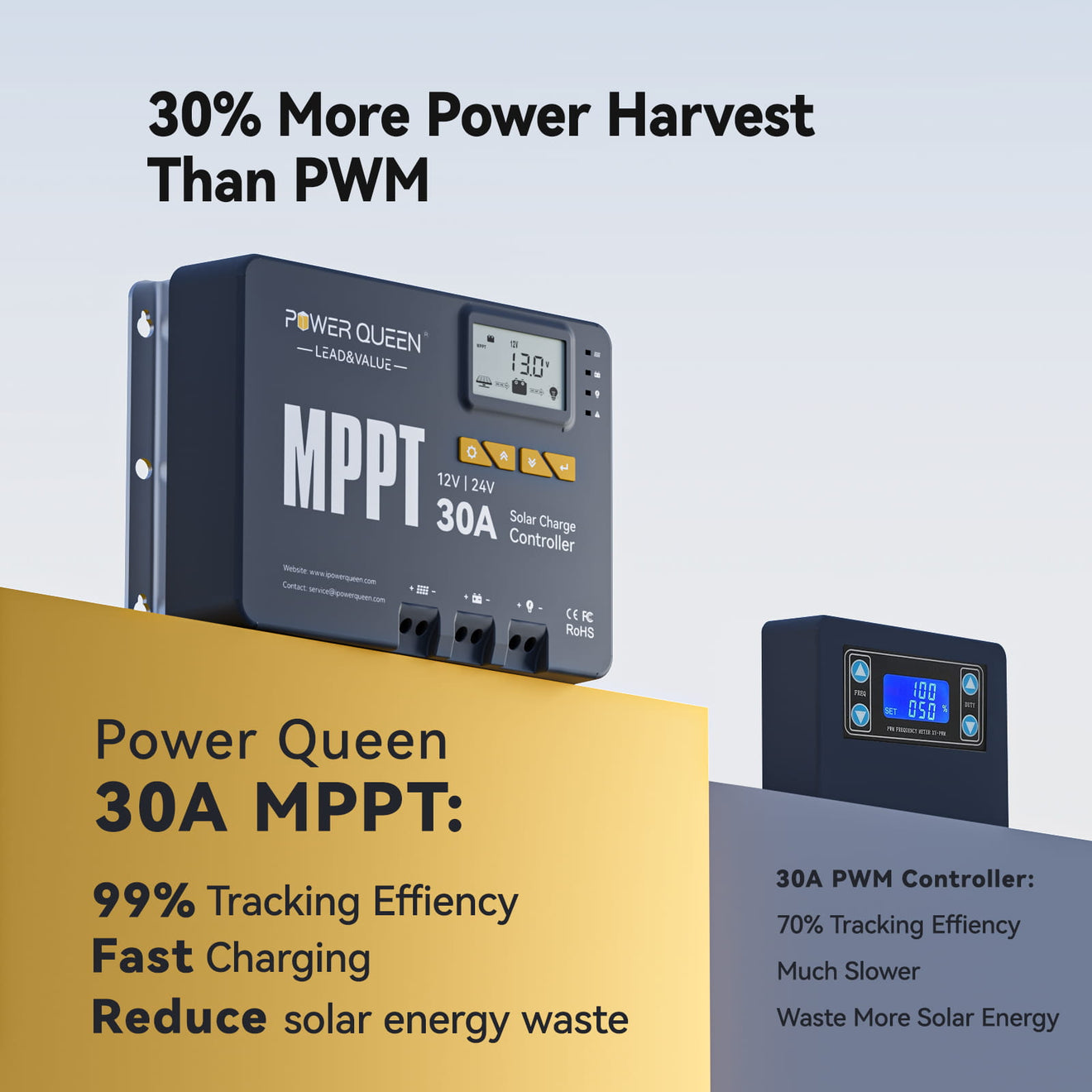

⦁ Power Queen 30A MPPT solar charge controller uses advanced tracking to optimize solar charging with ≥99% tracking and up to 98% conversion efficiency

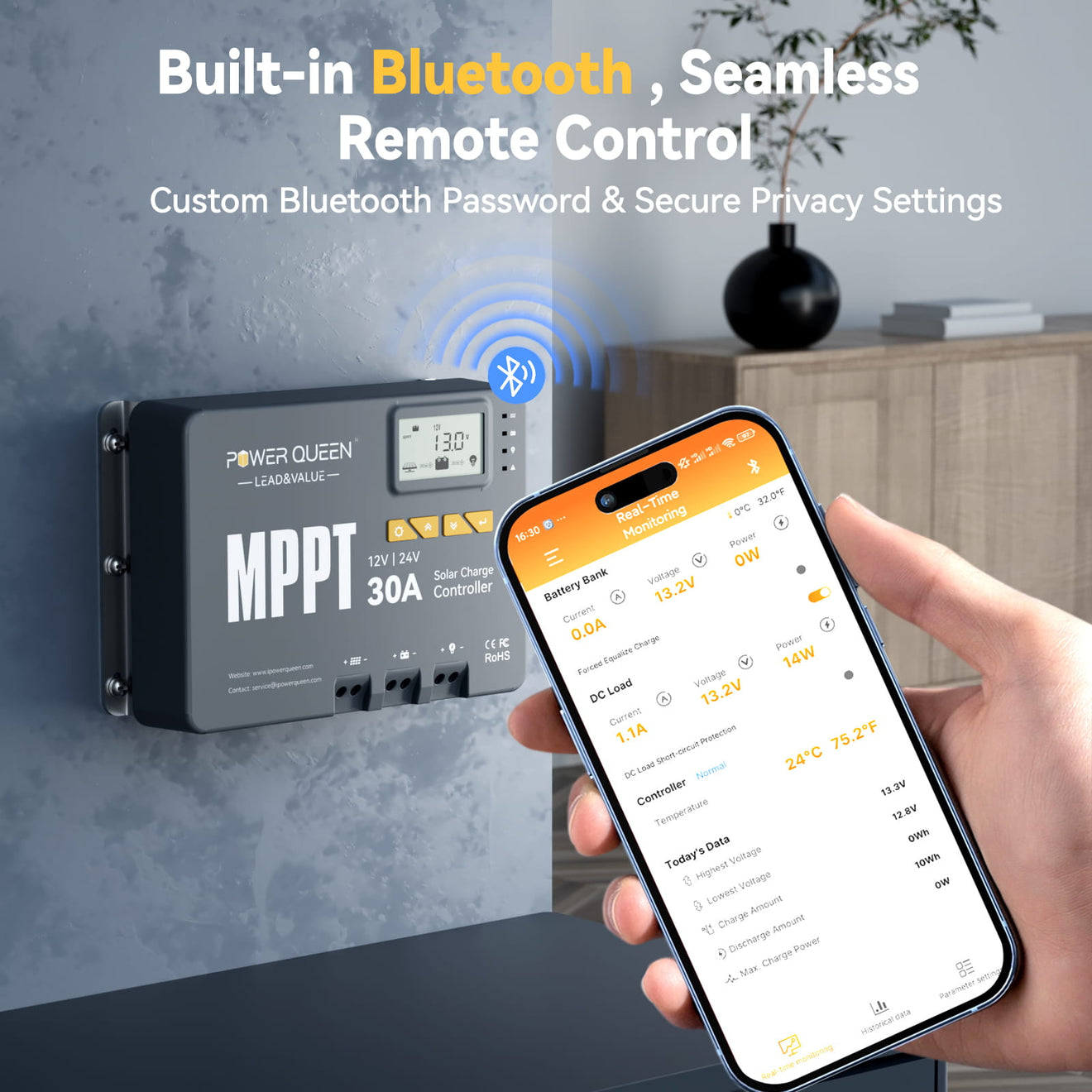

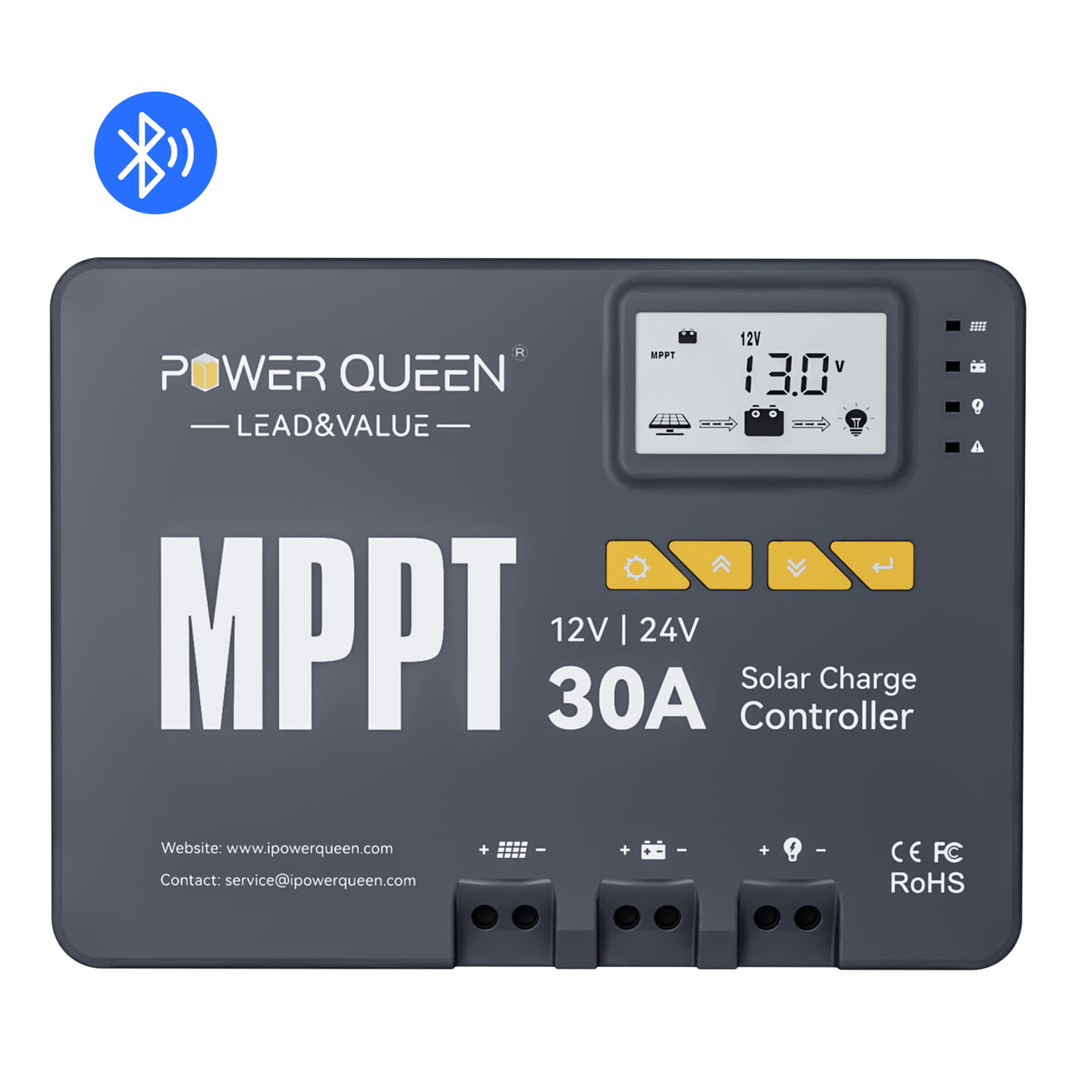

⦁ Integrated Bluetooth allows remote monitoring and control via the Power Queen App

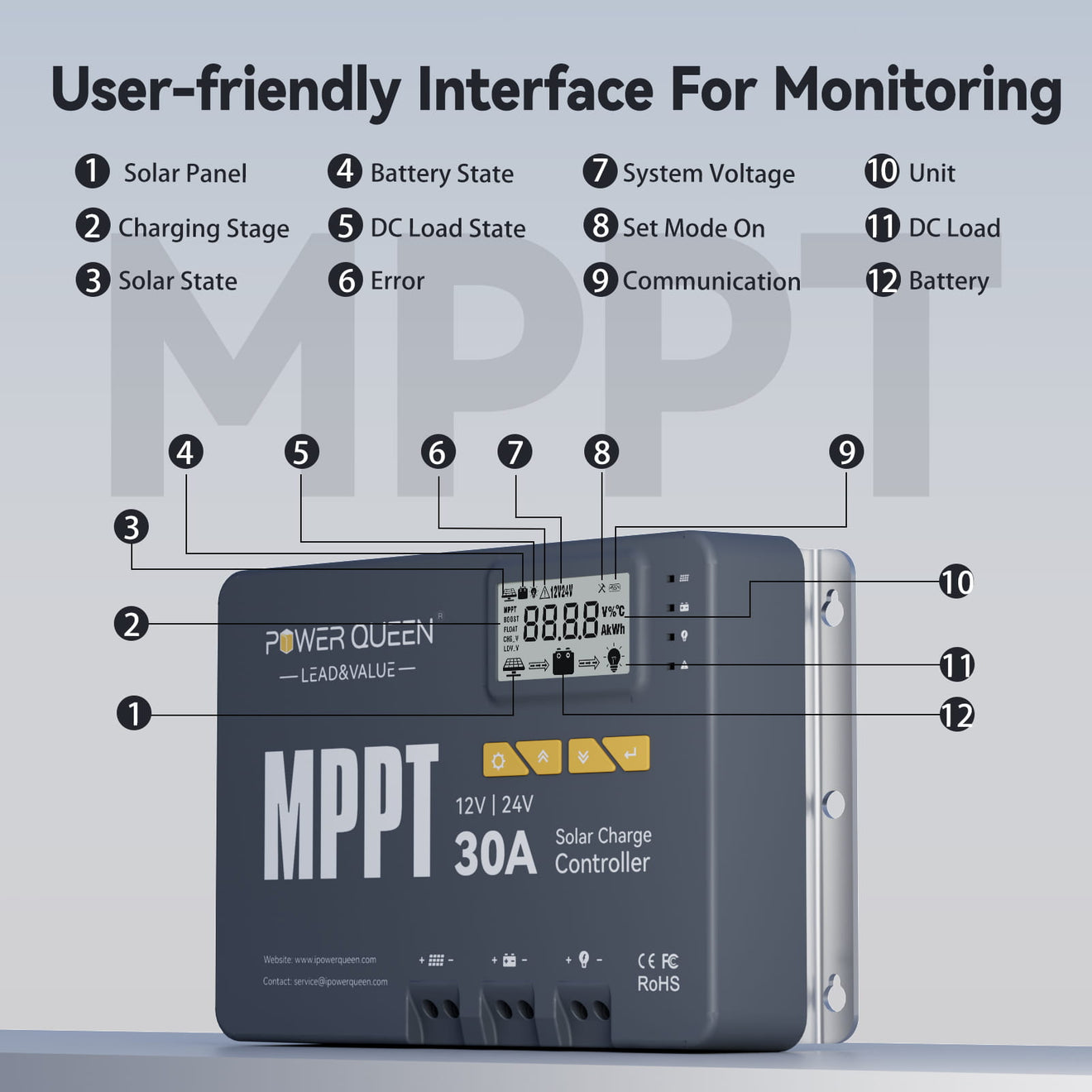

⦁ Equipped with an LED screen and 4-button interface, indicators for solar, battery, load, and system status

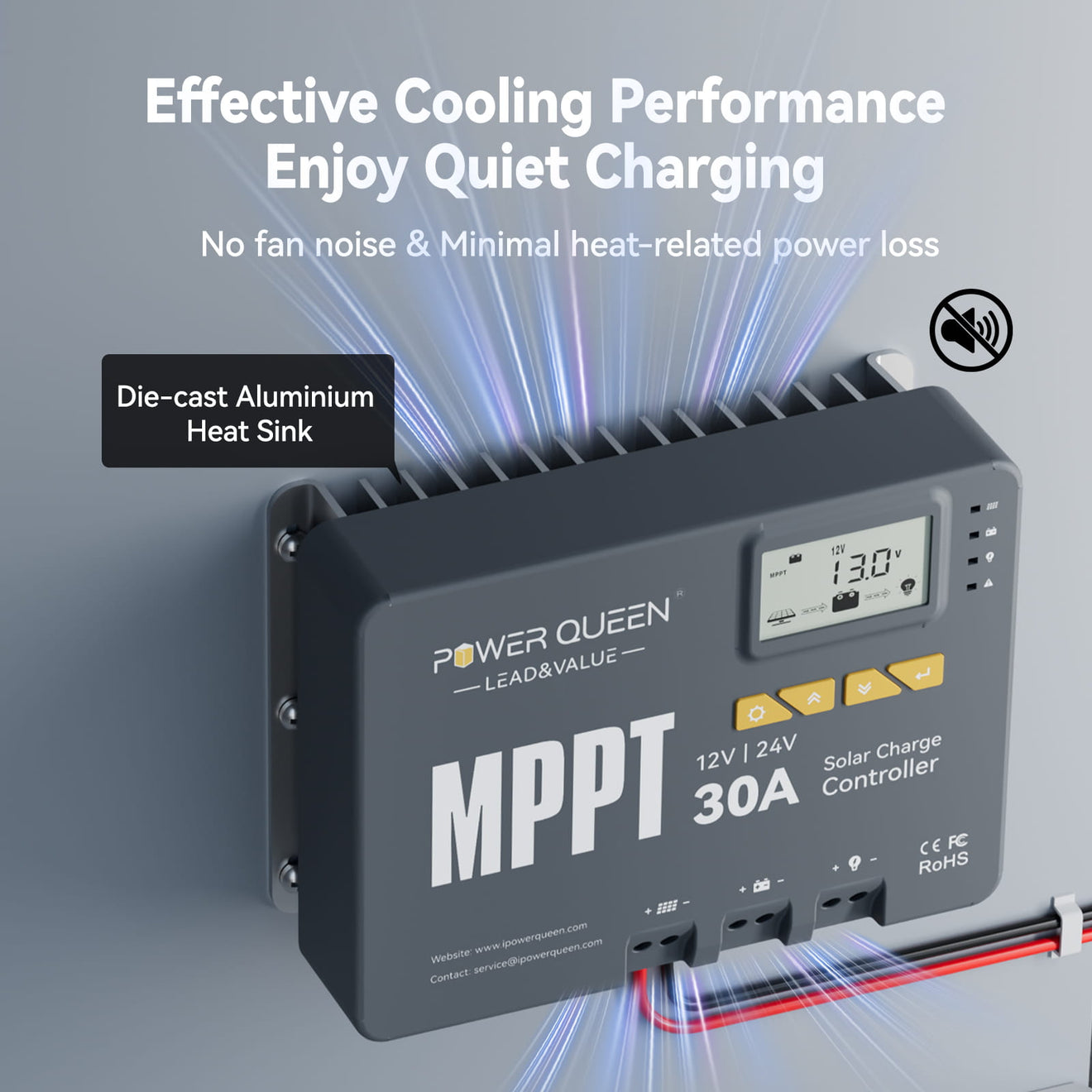

⦁ Die-cast aluminum body for efficient heat dissipation

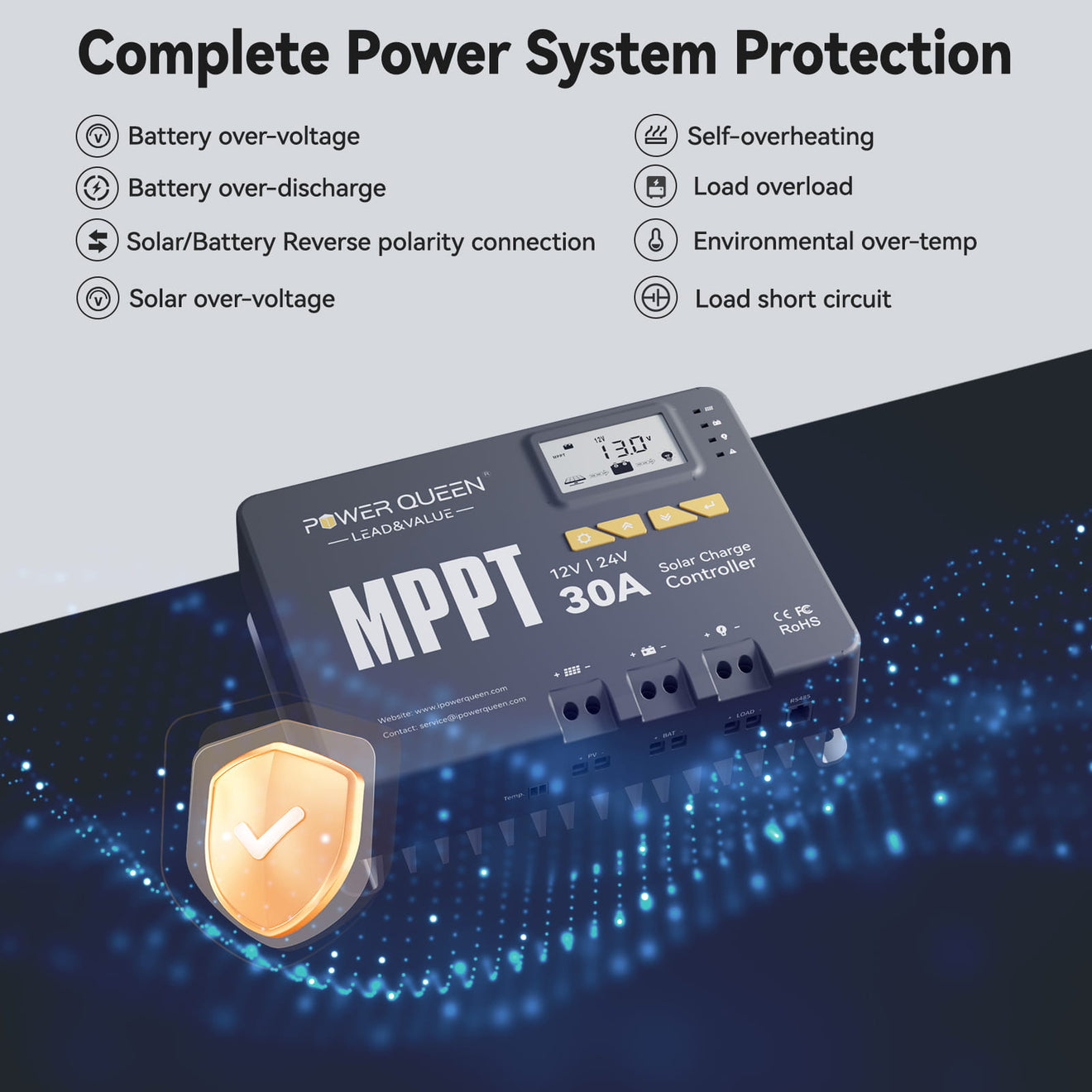

⦁ Full safety protection: short-circuit, over-temp, over-voltage, over-current, over-power, and reverse polarity

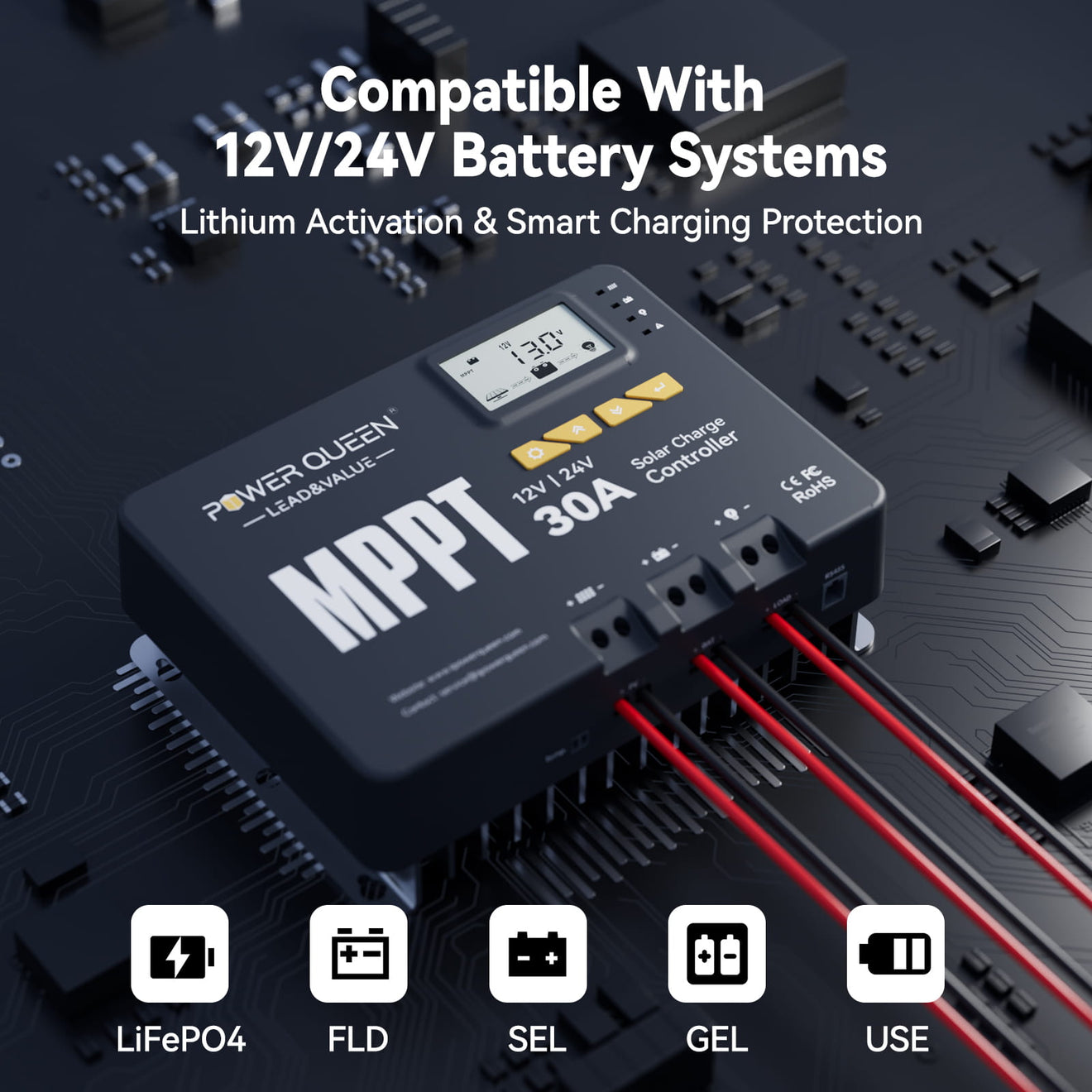

⦁ Works with 12V/24V LiFePO4 (default 12V), fld, sealed, gel, and lead-acid batteries; customizable via settings
View more
Quantity
Frequently Purchased
Total
C$161.99
C$209.99
3-Year Warranty
We back the quality and performance of our products with comprehensive warranties—battery chargers with a 2-year warranty. Learn more about Power Queen's warranty policy. 👈
Free Shipping in the CA
Free Shipping to Canada, Except Yukon, Northwest Territories, and Nunavut.
3-7 Working Days in Canada.
Easy Return & Exchange
Not satisfied? We offer a Hassle-Free 30-Day return and exchange policy.
12/24V 30 Amp MPPT Smart Solar Charge
C$161.99
C$209.99
Feature
Specs
Compare
FAQ
Reviews
Specs
BASIC
Default Battery Setting：
12V LI (Lithium Iron Phosphate) Battery
System Voltage：
12V/24V/AUTO
Rated Charging Current：
30A
Rated Load Current：
20A
WIRING
Max. Solar Panel System Input Power：
450Wfor12V/900W for 24V
Max. Solar Input Voltage：
100V
Battery Voltage：
9V to 32V
Max. Power Point Voltage Range：
Battery Voltage+3V to 76V
FAQ
How many watts can a Power Queen 30A solar charge controller handle?
The Power Queen 12V/24V 30A MPPT Solar Charge Controller is designed to function with standard off-grid 12V or 24V solar panels that can handle high voltage or multiple panels with a combined voltage of up to 100V. It supports a maximum input solar power of 450W for a 12V battery system and 900W for a 24V system. The default configuration of the Power Queen 12V/24V 30 Amp MPPT Solar Charge Controller is set for a 12V LiFePO4 battery. However, it can also be adjusted to support 24V LiFePO4 batteries, as well as sealed and gel lead-acid batteries, by modifying the parameters.
Does an MPPT make a battery overcharge?
Power Queen solar charge controllers employ maximum power point tracking (MPPT) technology to optimize solar energy production and regulate the battery charging voltage, ensuring efficient charging while preventing overcharging.
What does an MPPT do when the battery is charged to full?
When the battery voltage indicates that the battery is fully charged, the charger will disconnect and stop drawing power from the MPPT controller. At this point, the battery charger effectively presents a high impedance to the MPPT controller
Can I connect an MPPT with an inverter directly?
No. MPPT solar charge controllers are designed to efficiently direct current into your depleted battery. Connecting an MPPT solar charge controller directly to an inverter is a bad idea. Doing so can potentially damage your solar system, and if no damage occurs, the inverter will receive zero input. Therefore, always avoid connecting MPPT controllers directly to inverters.
What size charger controller should I use for a 30 watt solar panel?
Power Queen solar charge controllers keep the current from the panels at a safe level so that it may charge the batteries. A 30A controller is appropriate for a 300 watt solar panel installation.
