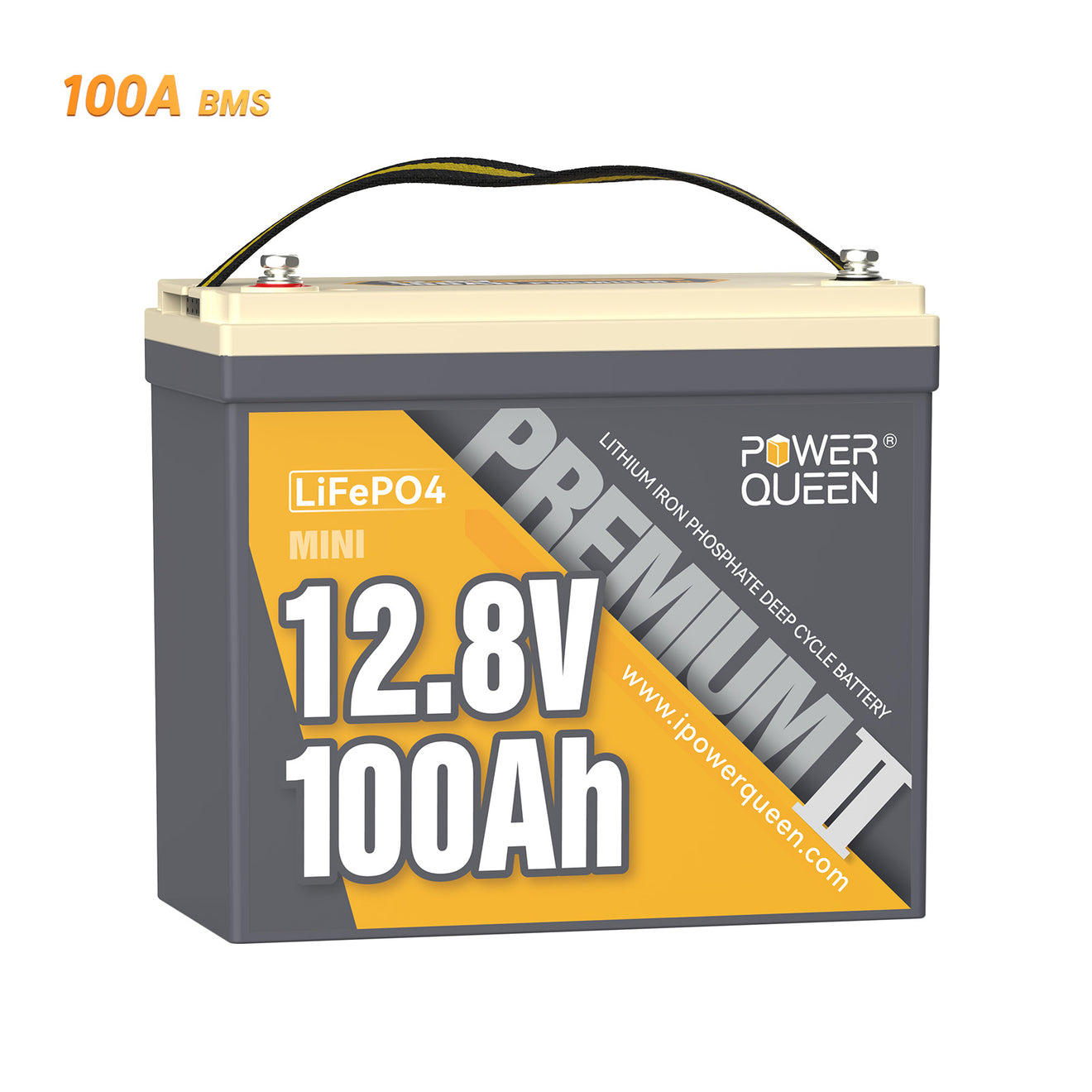

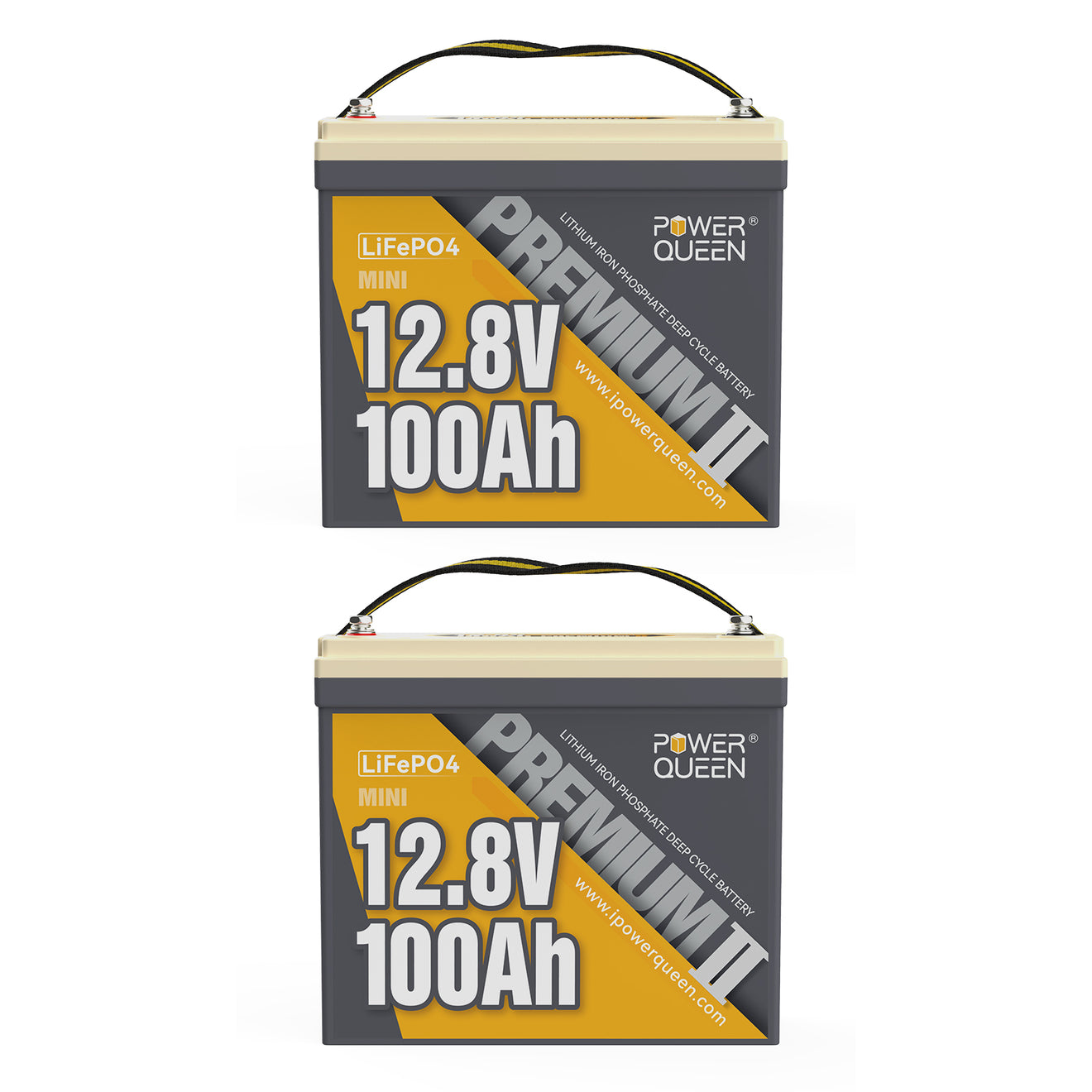

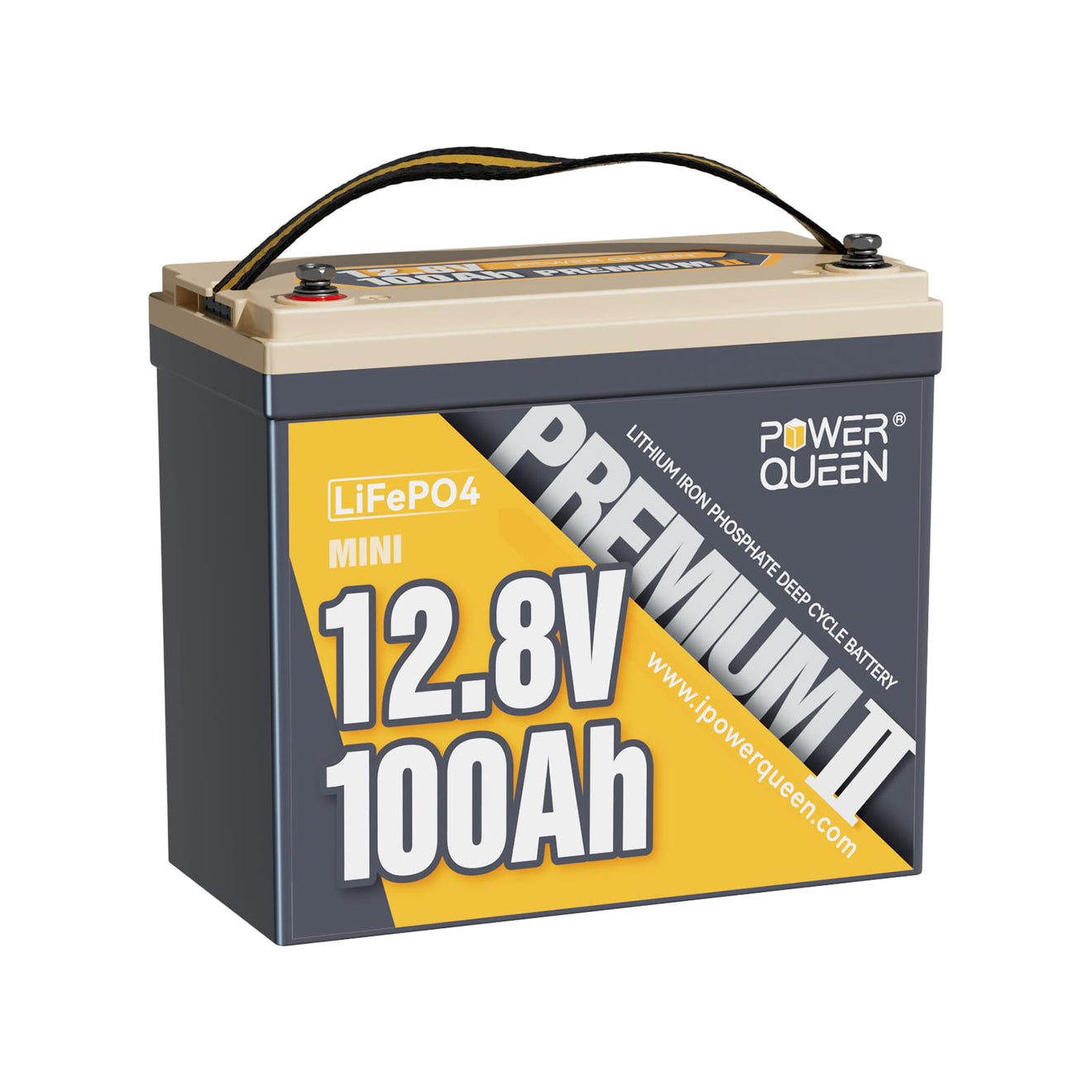

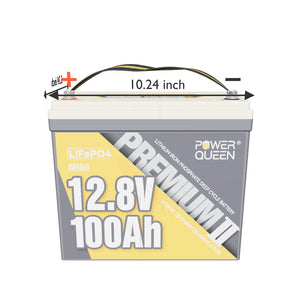

Power Queen 12V 100Ah Mini Deep Cycle LiFePO4 Battery
C$299.99
C$389.99

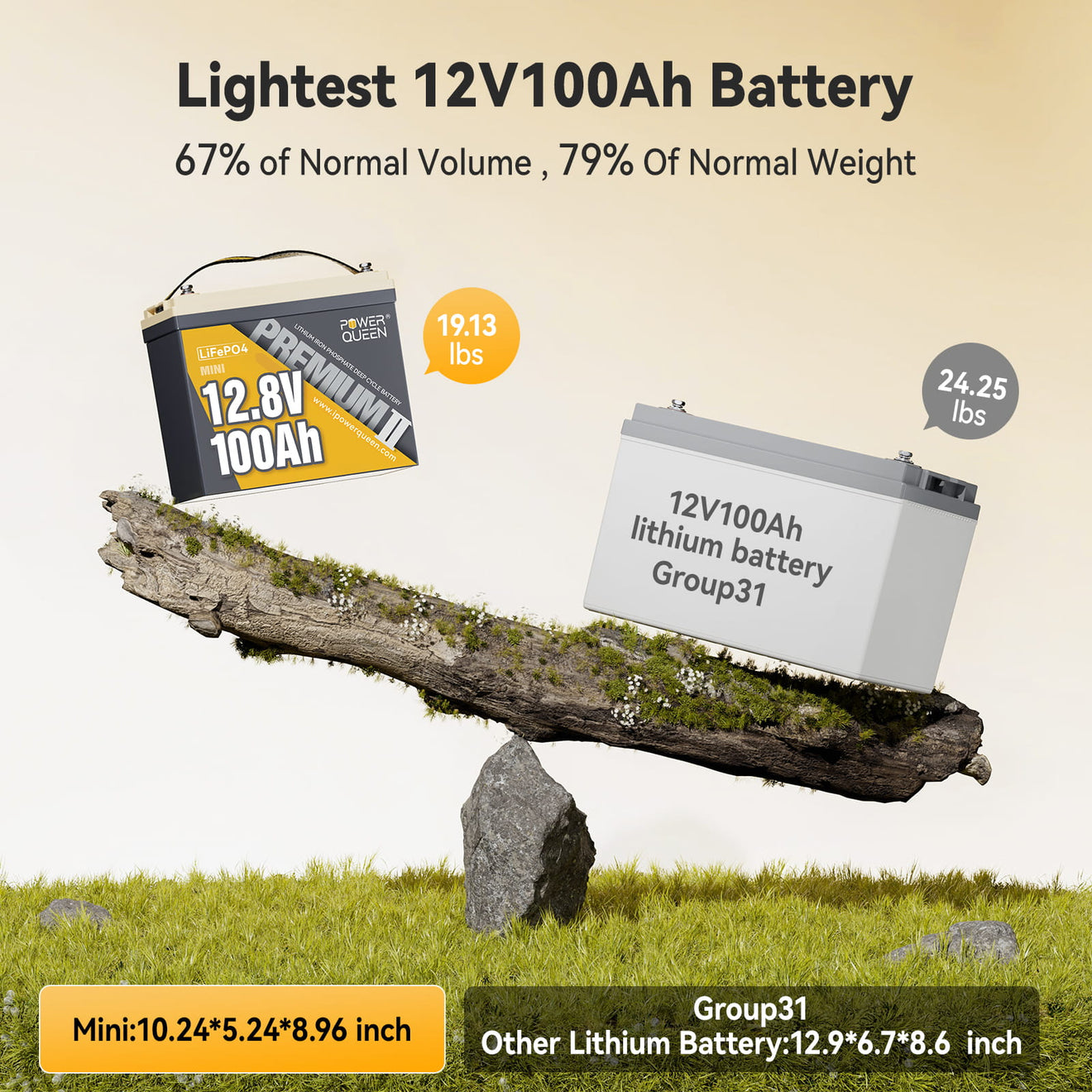

•22% Smaller In Length & 24% Smaller In Width：Size: L10.24in*W5.24in*H8.96in, 22% less in length and 24% less in width(compared with power queen 12V 100Ah lifepo4 battery: L13in*W6.77in*H8.43in). Space saving is widely used in caravan, camping, trolling motor,off-grid, and home solar systems.
•19% Lighter Weight & 23% Energy Density Increased：Power Queen 12V 100Ah Mini LiFePO4 Battery: 19.77lbs (weight) and 64.74Wh/lb(energy density:1280Wh/19.77lbs) VS Power Queen 12v 100Ah lifepo4 battery:24.25lbs (weight) and 52.78Wh/lb(energy density:1280Wh/24.25lb). Expanded energy density, reduced weight pressure, suitable for home solar systems and outdoor activities, etc.

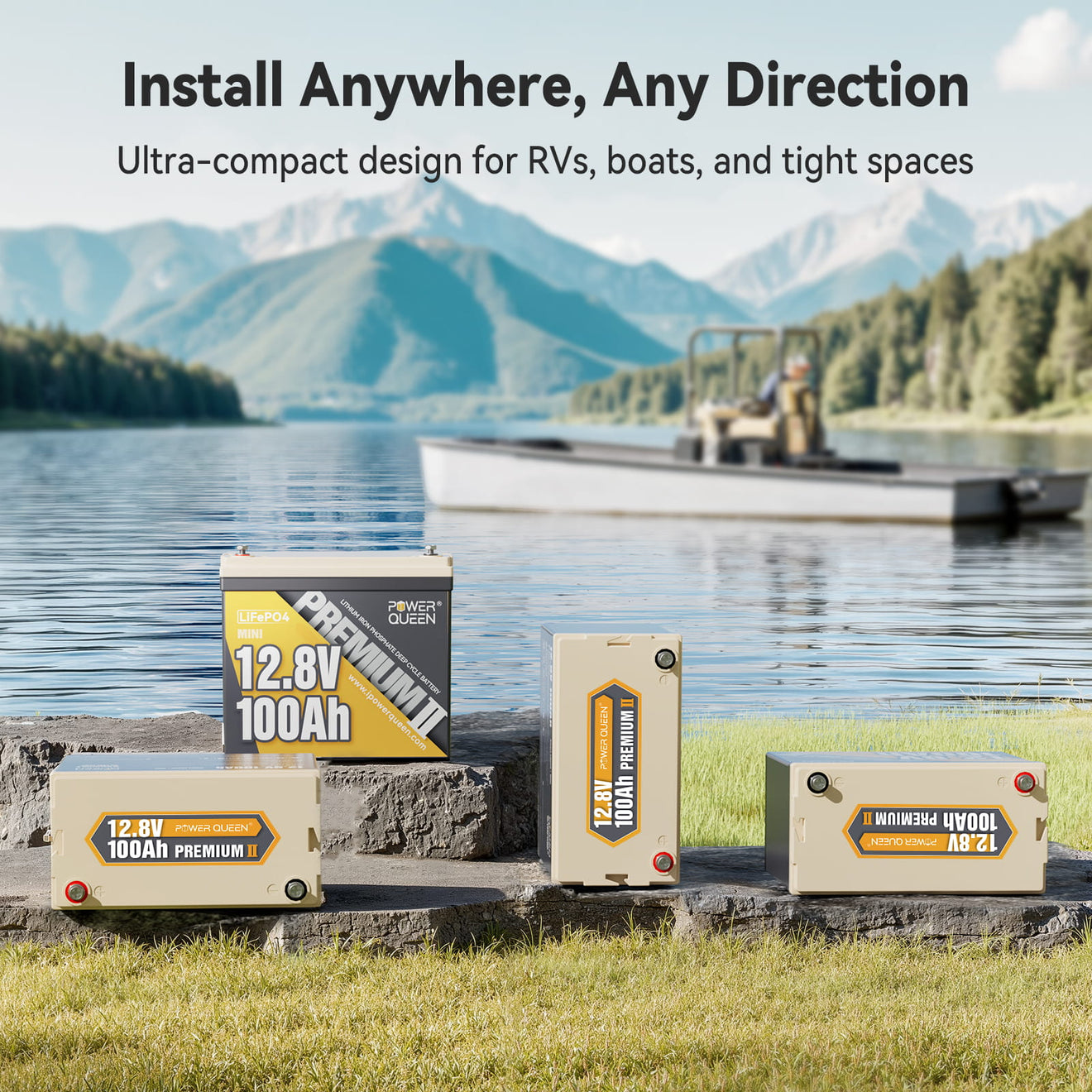

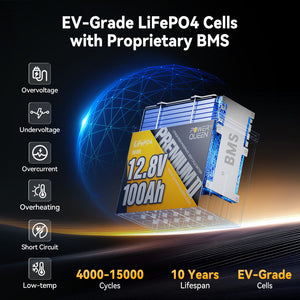

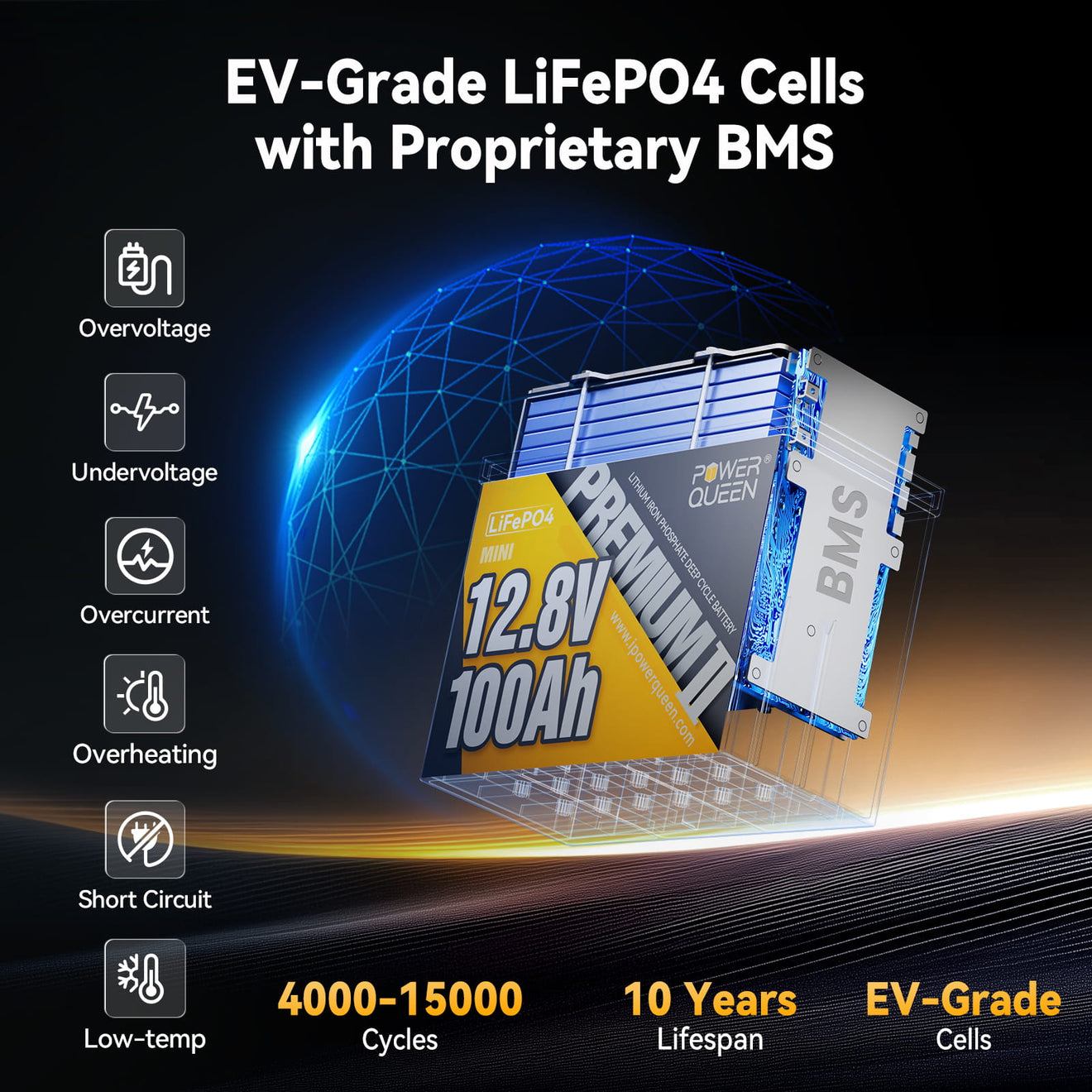

•Free Placement & 100A BMS Protection：No space limitation, free placement, provide 100A BMS battery protection, such as over-charging, over-discharging, over-current, over-temperature, short-circuit, and other faults.
•10-year Lifespan：With a 10-year lifespan, can be freely connected in parallel and series (4P/4S/4P4S), the maximum energy can reach 20.48kWh, the battery can fulfil 4000+Cycles@100DOD, or up to 15000+Cycles@60%DOD. Note: that we recommend using a 14.6V 20A charging current to charge the battery, it only takes about 5 hours (100Ah/20A=5hrs).
•5-Year Warranty & Fast Shipping：We offer a 5-year warranty and 24-hour one-on-one service.
Attention Please: This battery is NOT suitable to be used as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, lifts, vacuum cleaners, four-wheel drive lawn mowers, etc., for more info please consult Power Queen: support.ca@ipowerqueen.com
View more
Pack Size
Quantity
Frequently Bought Together
Free Shipping- Order today, estimated to be delivered within 2-5 business days.
Total
C$299.99
C$389.99
5-Year Warranty
We back the quality and performance of our products with comprehensive warranties. A 5-year warranty covers all Batteries. Learn more about Power Queen's warranty policy. 👈
Free Shipping in the CA
Free shipping to Canada, except Yukon, Northwest Territories, and Nunavut.
3-7 working days in Canada.
Easy Return & Exchange
Not satisfied? We offer a hassle-free 30-day return and exchange policy.
Share
12V 100Ah Mini
C$299.99
C$389.99
Feature
Specs
Compare
FAQ
Reviews
Features
Built for Limited Space

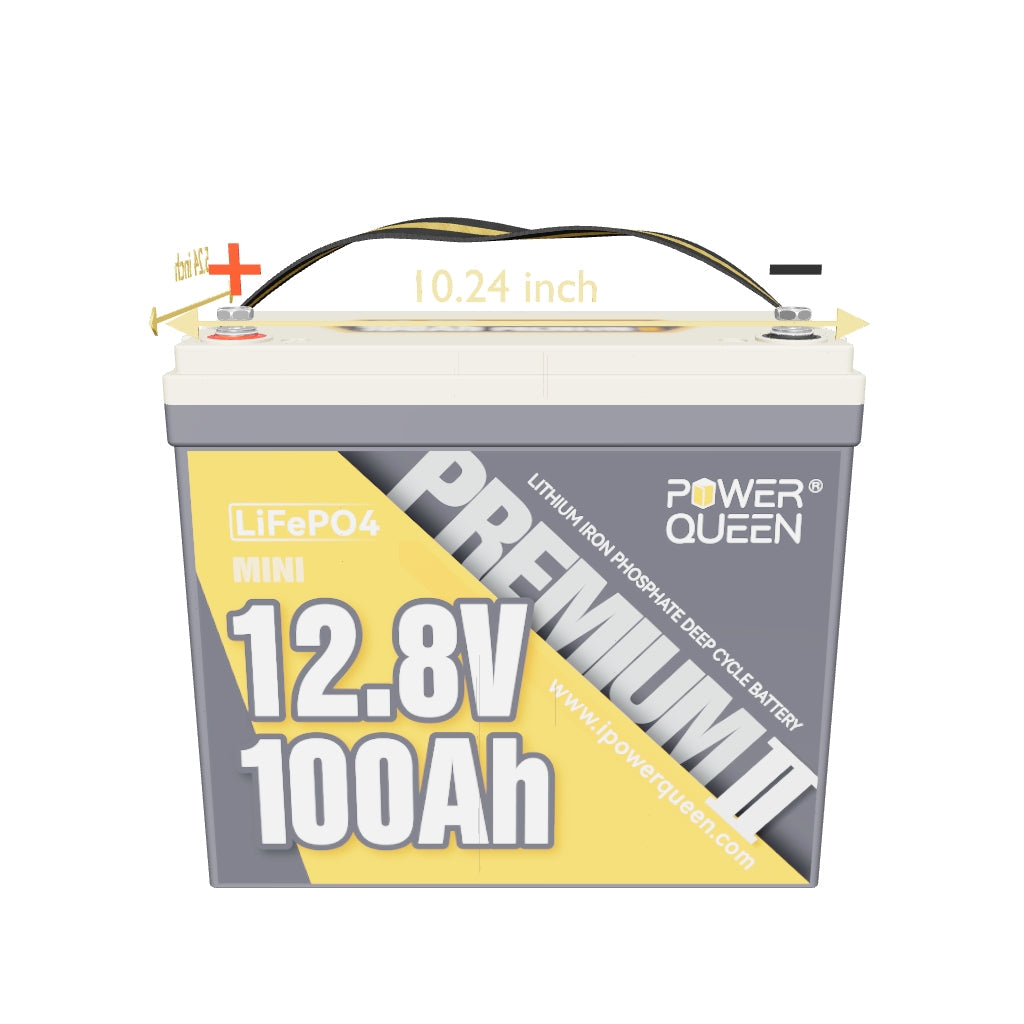

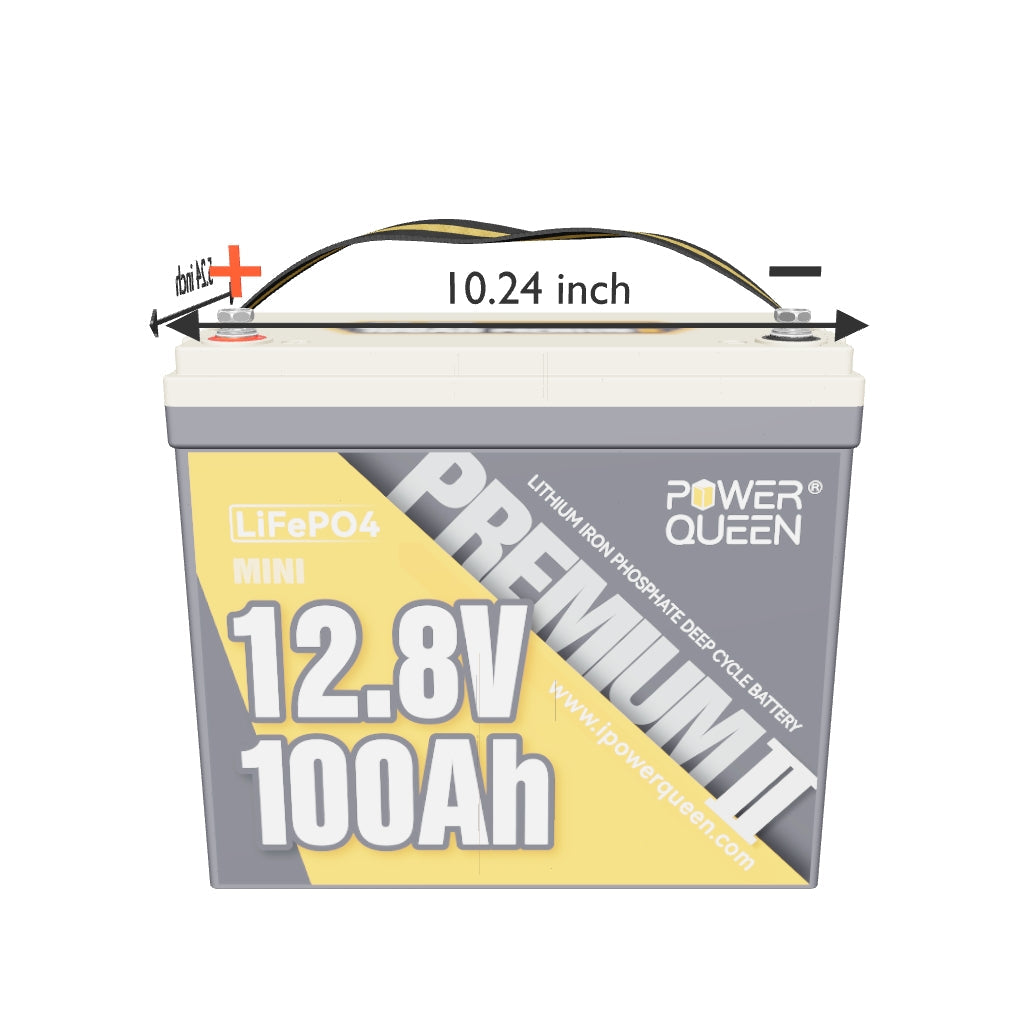

The Power Queen 12V 100Ah Small LiFePO4 Battery is significantly smaller than standard 12V 100Ah LiFePO4 batteries, with a 22% reduction in length and 24% in width. Measuring L10.24 inches × W5.24 inches × H8.96 inches, it's perfect for tight spaces like teardrop RVs, campers, kayaks, and off-grid devices—delivering power where space is limited.
Mini in Size, Max on Power
The 12V 100Ah Mini LiFePO4 Battery is more energy-dense, lighter, smaller, and more powerful—without the extra cost! It's currently the smallest and lightest 12V 100Ah LiFePO4 battery on the market, providing reliable power in compact spaces.
Easily Powers High-Wattage Appliances
With 1280Wh of energy and 1280W of power output, it meets the basic electricity needs of small RV appliances.
Expand Your Power System as Needed

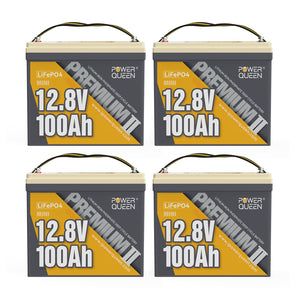

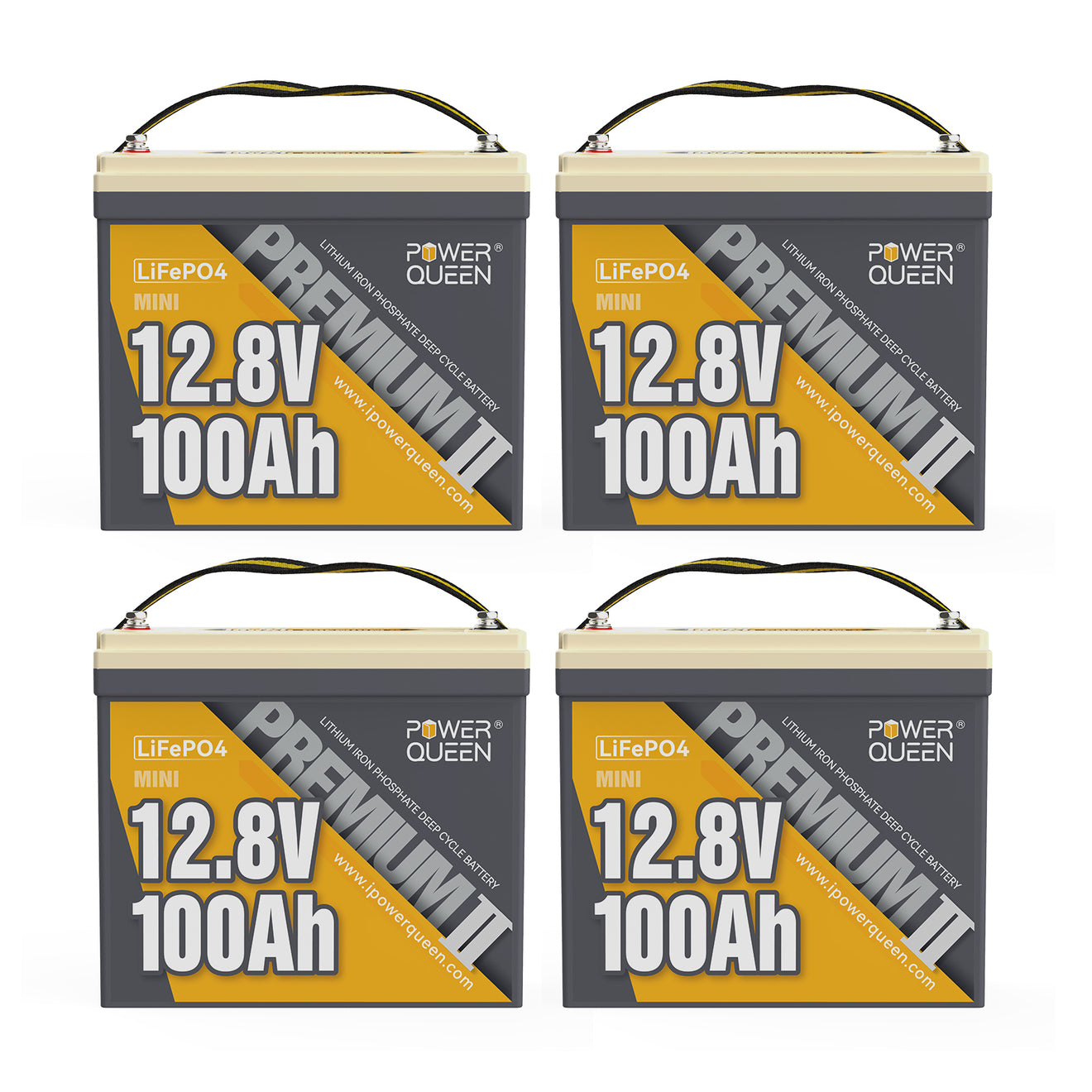

The 12V 100Ah Small LiFePO4 Battery supports a maximum expanded capacity of 20.48 kWh (connect up to 4 batteries in parallel and 4 in series to form a 48V (51.2V) 400Ah battery system). This provides you with more flexibility to design a battery system that meets your specific needs.
Versatile Uses
Space-saving and widely applicable for RVs, camping, trolling motors, off-grid systems, and home solar setups.
Professionally Tested and Certified
Power Queen lithium batteries are certified to UL, FCC, CE, RoHS, and UN38.3 standards.
Specs
BATTERY
Cell Type：
LiFePO4
Warranty：
5 Years
Cycle Life：
4000
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280Wh
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
FCC,CE,RoHS,UN38.3 certified. Complies with the UL1973 standard.
BMS
BMS：
100A
Max. Continuous Output Power：
1280W
Max. Continuous Charge Current：
100A(1C)
Max. Continuous Discharge Current：
100A(1C)
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4±0.2V
Recommend Charge Current：
20A(0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
-20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
OTHERS
Terminals：
M8*16 mm
Weight Approx.：
19.84 Ibs
Size：
10.24*5.24*8.96
Housing Material：
ABS
Protection Class：
IP65
View all
Compare
| Product |
12V 100Ah Mini
C$299.99
C$389.99
|
12V 100Ah Group 24
C$314.99
C$399.99
|
12V 100Ah TM
C$399.99
C$419.99
|
|---|---|---|---|
| Cell Type |
LiFePO4
|
LiFePO4 Prismatic
|
LiFePO4 Prismatic
|
| Warranty |
5 Years
|
5 Years
|
5 Years
|
| Cycle Life |
4000
|
4000
|
4000
|
| Nominal Voltage |
12.8V
|
12.8V
|
12.8V
|
| Rated Capacity |
100Ah
|
100Ah
|
100Ah
|
| Energy |
1280Wh
|
1280
|
1280
|
| Max. Expansion (Parallel & Series) |
4P4S
|
4P4S
|
4P4S
|
| Internal Resistance |
≤40mΩ
|
≤40mΩ
|
≤40mΩ
|
| Certifications |
FCC,CE,RoHS,UN38.3 certified. Complies with the UL1973 standard.
|
FCC,CE,RoHS,UN38.3 certified. Complies with the UL1973 standard.
|
FCC,CE,RoHS,UN38.3 certified. Complies with the UL1973 standard.
|
| Hot Cranking Amps (HCA) |
|
|
|
| Marine Cranking Amps (MCA) |
|
|
|
| Cold Cranking Amps (CCA) |
|
|
|
| BMS |
100A
|
100A
|
100A
|
| Max. Continuous Output Power |
1280W
|
1280
|
1280
|
| Max. Continuous Charge Current |
100A(1C)
|
100A(1C)
|
100A(1C)
|
| Max. Continuous Discharge Current |
100A(1C)
|
100A(1C)
|
100A(1C)
|
| Max. Discharge Current 5 Seconds |
|
|
|
| Max. Charge Current (Outboard Alternator) |
|
|
|
| Max. Charge Current (Outboard Charger) |
|
|
|
| Charge Method |
CC/CV
|
CC/CV
|
CC/CV
|
| Charge Voltage |
14.4±0.2V
|
14.4±0.2V
|
14.4±0.2V
|
| Recommend Charge Current |
20A(0.2C)
|
20A(0.2C)
|
20A(0.2C)
|
| Charge Temperature |
0℃ to 50 ℃ / 32℉ to 122 ℉
|
0℃ to 50 ℃ / 32℉ to 122 ℉
|
0℃ to 50 ℃ / 32℉ to 122 ℉
|
| Discharge Temperature |
-20℃ to 60 ℃ / -4℉ to 140 ℉
|
-20℃ to 60 ℃ / -4℉ to 140 ℉
|
-20℃ to 60 ℃ / -4℉ to 140 ℉
|
| Terminals |
M8*16 mm
|
M8*16 mm
|
M8*16 mm
|
| Weight Approx. |
19.84 Ibs
|
22.16 Ibs
|
22.16 Ibs
|
| Size |
10.24*5.24*8.96
|
10.24*6.61*8.27 inch
|
13*6.77*8.5 inch
|
| Housing Material |
ABS
|
ABS
|
ABS
|
| Protection Class |
IP65
|
IP65
|
IP65
|
FAQ
What battery charger should I use for the Power Queen 12V 100Ah Mini Deep Cycle Lithium Battery?
We recommend using a 14.6V lithium iron phosphate (LiFePO4) battery charger to achieve maximum capacity.
1. Recommended Charging Voltage: 14.2V ~ 14.6V
2. Recommended Charging Current:
①20A (0.2C): The battery will reach 100% capacity in approximately 5 hours.
②50A (0.5C): The battery will reach around 97% capacity in approximately 2 hours.
Attention:
1. Connect the charger to the battery before plugging it into the power supply to prevent sparks.
2. Disconnect the charger from the battery once it is fully charged.
Can I use an alternator or generator to charge the LiFePO4 lithium battery?
Yes, you can charge Power Queen batteries using an alternator or generator. If your alternator or generator provides DC output, you'll need a DC-to-DC charger to connect the battery. If it supports AC output, you can use a 14.6V lithium iron phosphate (LiFePO4) battery charger to achieve maximum capacity.
Can I use Power Queen LiFePO4 lithium batteries as starting batteries?
No, Power Queen LiFePO4 lithium batteries are designed solely for energy storage and are not intended for starting devices. Please refrain from using them for this purpose.
Can I charge Power Queen LiFePO4 lithium batteries in cold weather (under freezing temperatures)?
No, The Power Queen 12V 100Ah Mini Deep Cycle Lithium Batteries can charge securely from 0℃ to 50℃ (32℉ to 122℉). It should be noted that this 12V 100Ah mini version does not include a low-temperature charging protection function.
