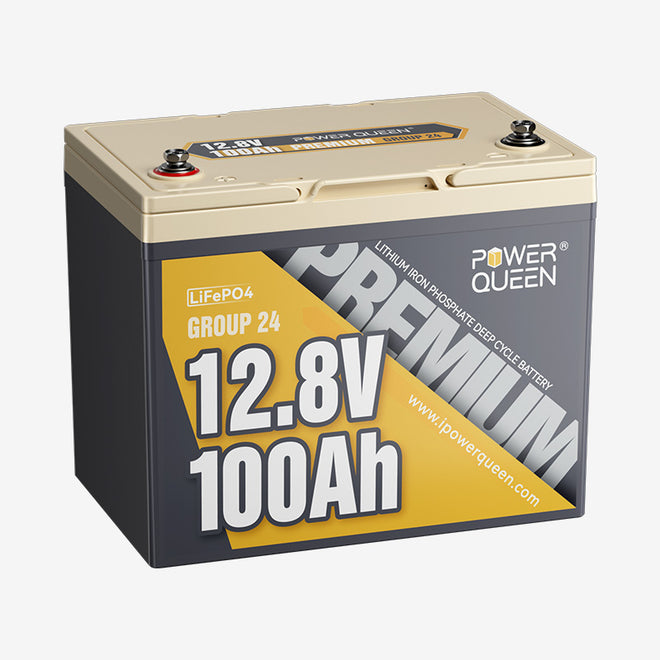

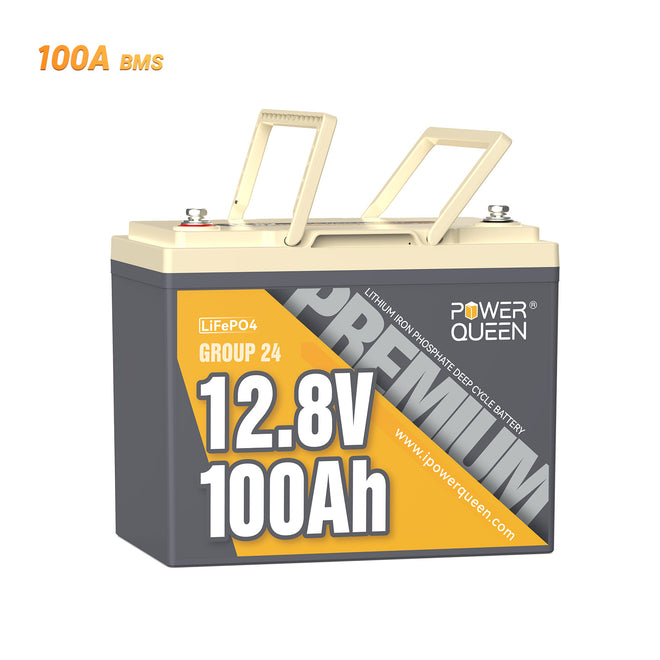

Power Queen 12V 100Ah Group 24 LiFePO4 Battery
C$349.99
C$479.99

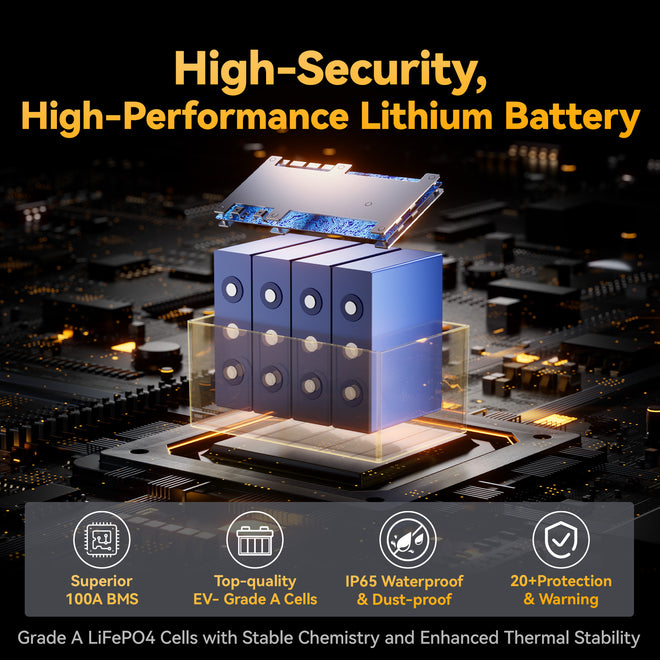

[High-Quality Cells & 100A BMS] Power Queen 12V 100Ah Premium LiFePO4 Battery is crafted from Grade-A cells with a built-in 100A BMS for comprehensive protection against overcharging and short circuits.
[Direct Group 24 Replacement] This Group Size 24 battery seamlessly replaces lead-acid batteries without modifications, simplifying your upgrade to lithium power.
[Economical & Eco-Friendly] Achieve 4000+ cycles and save 50% on power costs with our eco-friendly battery, ideal for solar power, RVs, and outdoor activities.

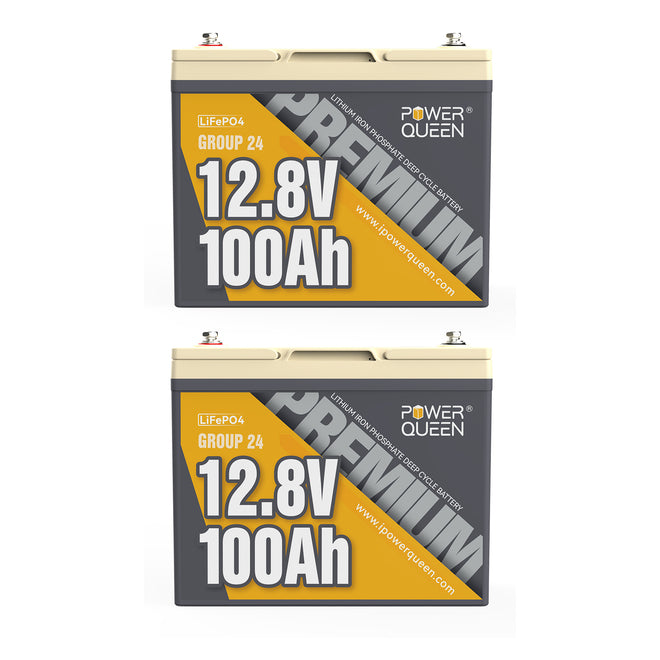

[Expandable Power Solutions] Connect multiple batteries in series or parallel to form a battery bank up to 20.48kWh, providing reliable power for over a decade.
[5-Year Warranty & 24/7 Support] Enjoy a reliable 5-year warranty and continuous customer support, ensuring peace of mind and quick assistance.
Attention Please: This battery is NOT suitable to be used as a starter battery, golf cart battery, or for high-power applications such as water pumps, electric jacks, lifts, vacuum cleaners, four-wheel drive lawn mowers, etc., for more info please consult Power Queen: support.ca@ipowerqueen.com
View more
Choose Products
Quantity
Frequently Purchased
Total
C$349.99
C$479.99
5-Year Warranty
We back the quality and performance of our products with comprehensive warranties. A 5-year warranty covers all Batteries. Learn more about Power Queen's warranty policy. 👈
Free Shipping in the CA
Free shipping to Canada, except Yukon, Northwest Territories, and Nunavut.
3-7 working days in Canada.
Easy Return & Exchange
Not satisfied? We offer a hassle-free 30-day return and exchange policy.
Share
12V 100Ah Group 24
C$349.99
C$479.99
Feature
Specs
Compare
FAQ
Reviews

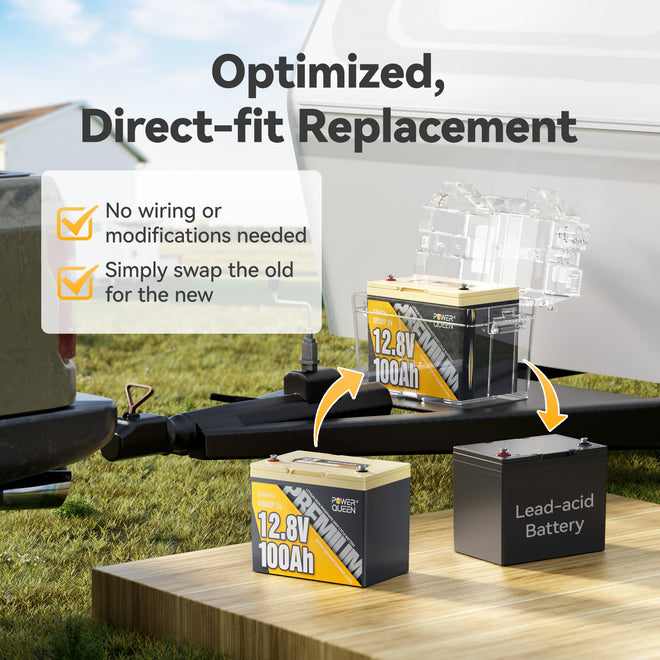

The Power Queen 12V 100Ah Group 24 deep cycle battery fits perfectly in Group 24 battery boxes. Swapping out your old battery takes just 5 minutes, and it works with all vehicles or devices that use Group 24 batteries.
Equipped with a 100A BMS, the Power Queen 12V 100Ah Group 24 battery provides steady power to high-wattage devices, such as RV air conditioners, refrigerators, and trolling motors. The BMS provides full protection against overcharging, deep discharge, overcurrent, overheating, and short circuits—keeping things safe and extending the battery’s life.
Power Queen lithium batteries utilize the same LiFePO4 cells as electric vehicles, boasting a cycle life of over 4,000 times. Thanks to top-tier EV-grade LiFePO4 cells, it’ll work reliably for 10+ years if used once a day.

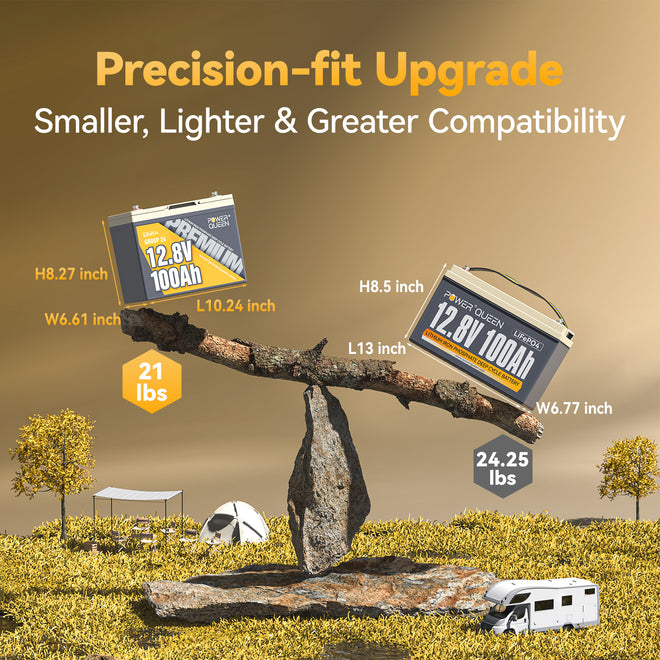

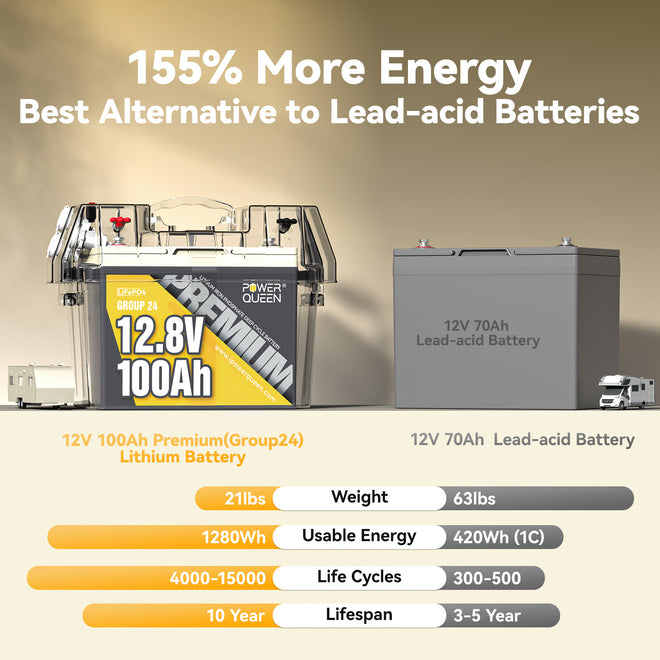

This 12V 100Ah Group 24 deep cycle lithium battery weighs only 1/3 of a traditional Group 24 AGM battery, offers 8x the energy density, and delivers 100% of its power (1280Wh). Unlike traditional lead-acid batteries, which only release 50% of their energy, this lithium battery provides more efficient power even when fully discharged (100% DOD)—and it’s more compact too.

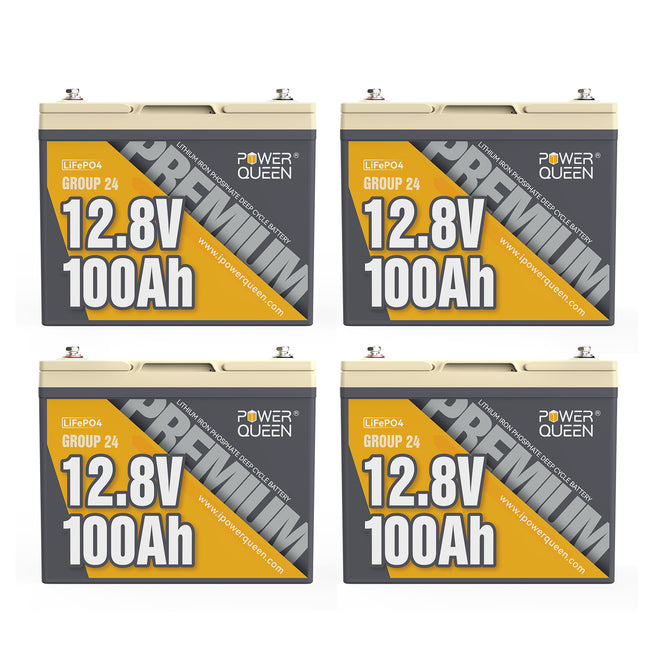

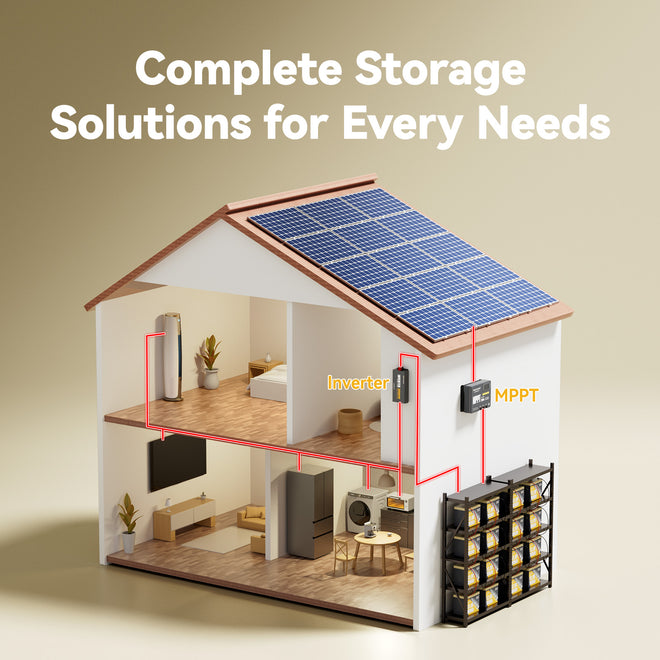

You can connect up to 16 Power Queen 12V 100Ah Group 24 batteries in a 4P4S setup to build a 51.2V 400Ah system, packing an impressive 20.48kWh of energy—enough to power a household for 3 days during emergencies. This scalable system is easy to customize for large-scale uses like off-grid solar setups, RVs, and home energy storage.

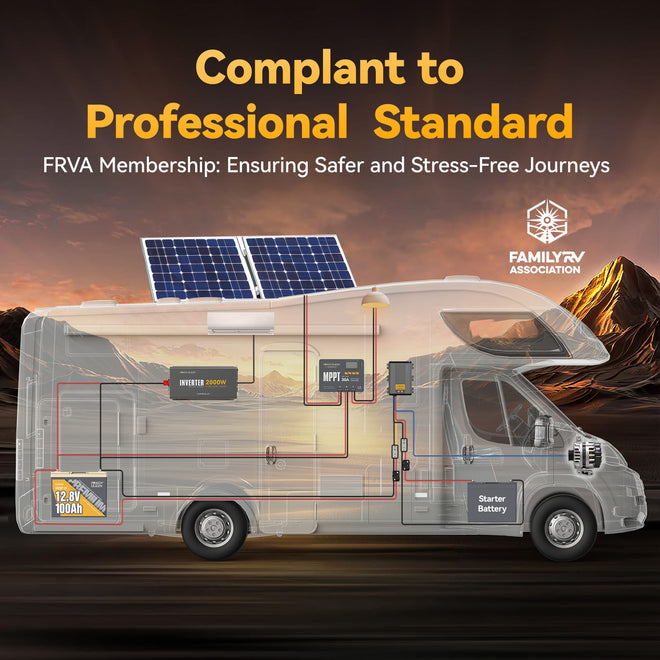

With 1280Wh of power, the Power Queen 12V 100Ah Group 24 LiFePO4 battery is suitable for numerous applications, including RVs, trolling motors, off-grid systems, and home storage, providing stable performance.
Specs
BATTERY
Cell Type：
LiFePO4 Prismatic
Warranty：
5 Years
Cycle Life：
4000
Nominal Voltage：
12.8V
Rated Capacity：
100Ah
Energy：
1280
Max. Expansion (Parallel & Series)：
4P4S
Internal Resistance：
≤40mΩ
Certifications：
UL-1973，FCC，CE，RoHS，UN38.3
BMS
BMS：
100A
Max. Continuous Output Power：
1280
Max. Continuous Charge Current：
100A(1C)
Max. Continuous Discharge Current：
100A(1C)
CHARGE
Charge Method：
CC/CV
Charge Voltage：
14.4±0.2V
Recommend Charge Current：
20A(0.2C)
TEMPERATURE
Charge Temperature：
0℃ to 50 ℃ / 32℉ to 122 ℉
Discharge Temperature：
-20℃ to 60 ℃ / -4℉ to 140 ℉
Storage Temperature：
-10℃ to 50 ℃ / 14℉ to 122 ℉
Low-Temperature Protection：
No
OTHERS
Terminals：
M8*16 mm
Weight Approx.：
22.16 Ibs
Size：
10.24*6.61*8.27 inch
Housing Material：
ABS
Protection Class：
IP65
View all
Compare
| Product |
12V 100Ah Group 24
C$349.99
C$479.99
|
12V 100Ah Mini
C$369.99
C$509.99
|
12V 100Ah Group 24 Smart
C$379.99
C$519.99
|
|---|---|---|---|
| Cell Type |
LiFePO4 Prismatic
|
LiFePO4
|
LiFePO4 Prismatic
|
| Warranty |
5 Years
|
5 Years
|
5 Years
|
| Cycle Life |
4000
|
4000
|
4000
|
| Nominal Voltage |
12.8V
|
12.8V
|
12.8V
|
| Rated Capacity |
100Ah
|
100Ah
|
100Ah
|
| Energy |
1280
|
1280Wh
|
1280
|
| Max. Expansion (Parallel & Series) |
4P4S
|
4P4S
|
4P4S
|
| Internal Resistance |
≤40mΩ
|
≤40mΩ
|
≤40mΩ
|
| BMS |
100A
|
100A
|
100A
|
| Max. Continuous Output Power |
1280
|
1280W
|
1280
|
| Max. Continuous Charge Current |
100A(1C)
|
100A(1C)
|
100A(1C)
|
| Charge Method |
CC/CV
|
CC/CV
|
CC/CV
|
| Charge Voltage |
14.4±0.2V
|
14.4±0.2V
|
14.4±0.2V
|
| Recommend Charge Current |
20A(0.2C)
|
20A(0.2C)
|
20A(0.2C)
|
| Charge Temperature |
0℃ to 50 ℃ / 32℉ to 122 ℉
|
0℃ to 50 ℃ / 32℉ to 122 ℉
|
0℃ to 50 ℃ / 32℉ to 122 ℉
|
| Discharge Temperature |
-20℃ to 60 ℃ / -4℉ to 140 ℉
|
-20℃ to 60 ℃ / -4℉ to 140 ℉
|
-20℃ to 60 ℃ / -4℉ to 140 ℉
|
| Storage Temperature |
-10℃ to 50 ℃ / 14℉ to 122 ℉
|
-10℃ to 50 ℃ / 14℉ to 122 ℉
|
-10℃ to 50 ℃ / 14℉ to 122 ℉
|
| Terminals |
M8*16 mm
|
M8*16 mm
|
M8*14 mm
|
| Weight Approx. |
22.16 Ibs
|
19.84 Ibs
|
22.16
|
| Size |
10.24*6.61*8.27 inch
|
10.24*5.24*8.96
|
10.24*6.61*8.27
|
| Housing Material |
ABS
|
ABS
|
ABS
|
| Protection Class |
IP65
|
IP65
|
IP65
|
FAQ
What's the dimension of group 24 battery?
The Group 24 battery, a standard model, measures 10.5″L x 6.1875″W x 8.875″H and is commonly used in vehicles, backup power systems, and medical equipment. These batteries are often employed as deep cycle batteries rather than for engine starting purposes.
What to do when receive the group 24 battery?
Please keep in mind that owing to transit and storage, your battery may have a low State of Charge (SOC) when it arrives. To avoid over-discharge, we recommend charging the battery immediately using an AC-DC lithium battery charger or an MPPT solar charge controller.
If you plan to store the battery for an extended period of time, we recommend charging it to a state of charge (SOC) of 30% to 50% and doing maintenance every three months. These procedures will help to maintain its functioning and performance in the long run.
How many batteries can I connect in series or parallel?
The 12V lithium battery from Power Queen allows for a maximum of 4 batteries to be connected in series and 4 in parallel, enabling you to create a battery system with up to 16 units. This configuration offers a maximum capacity of 20.48 kWh and a maximum cont. output power of 1280 W.
Note: When connecting batteries in series or parallel, ensure they meet the following conditions:
a. They must be identical, with the same battery capacity (Ah) and BMS (A).
b. They should be from the same brand, as lithium batteries from different brands have unique BMS systems.
c. They should be purchased within a short time frame (within one month).
Can I use Power Queen LiFePO4 Lithium batteries as starting batteries?
No, Power Queen LiFePO4 lithium batteries are designed for energy storage, not for starting devices. Therefore, please do not use them to start any equipment.
For more information, refer to the article "Deep Cycle vs. Starting Battery."
